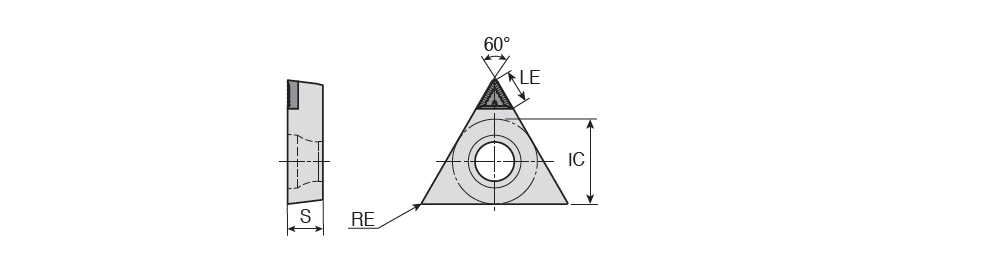

TCGW-PCD : Positive Triangular inserts with single PCD tip of positive rake angle for finishing of aluminum & non-ferrous metal

Designation	LE	IC	S	RE	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TCGW 090208 LN-7	3.00	5.56	2.38	0.80	60~	7.00~	0.10	2.00	0.05	0.30	1~	P ~	~	9.60~	T ~	71DD68D301C30 ~	PCD ~	TD1020~	3~	ISO$TC0902083NA$$08 ~	732 LN ~	TCGW ~	Y ~	9 ~	6264339	1	TD1020
TCGW 090204 LN-7	3.30	5.56	2.38	0.40	60~	7.00~	0.10	2.00	0.05	0.30	1~	P ~	~	9.60~	T ~	71DD68D301C30 ~	PCD ~	TD1020~	3~	ISO$TC0902043NA$$04 ~	731 LN ~	TCGW ~	Y ~	9 ~	6264338	1	TD1020
TCGW 16T308 LN-7	3.50	9.52	3.97	0.80	60~	7.00~	0.10	2.00	0.05	0.30	1~	P ~	~	16.50~	T ~	71DD68D301C30 ~	PCD ~	TD1020~	3~	ISO$TC16T3083NA$$08 ~	16T308 ~	TCGW ~	Y ~	16 ~	6264344	2	TD810 TD1020
TCGW 110204 LN-7	3.80	6.35	2.38	0.40	60~	7.00~	0.10	2.00	0.05	0.30	1~	P ~	~	11.00~	T ~	71DD68D301C30 ~	PCD ~	KP300 ~	3~	ISO$TC1102043NA$$04 ~	110204 ~	TCGW ~	Y ~	11 ~	6264342	5	TD1030 TD810 TD1010 KP300 TD1020
TCGW 16T304 LN-7	3.80	9.52	3.97	0.40	60~	7.00~	0.10	2.00	0.05	0.30	1~	P ~	~	16.50~	T ~	71DD68D301C30 ~	PCD ~	TD1020~	3~	ISO$TC16T3043NA$$04 ~	32.51 ~	TCGW ~	Y ~	16 ~	6264343	1	TD1020
