TaeguTec Cutting Tools - Metal Working Tools - Turning -

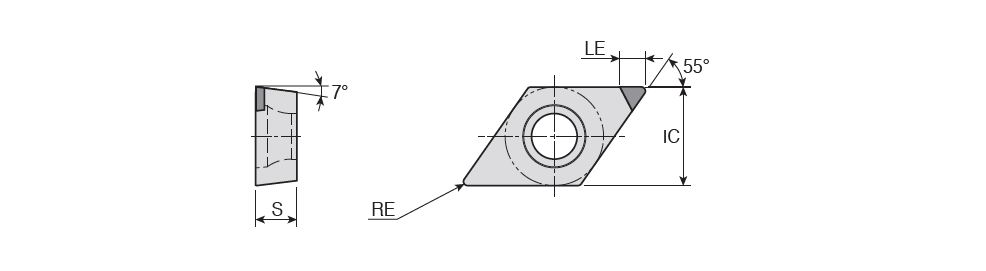

DCGW-PCD : Positive 55° Rhombic inserts with single PCD tip of positive rake angle for finishing of aluminum & non-ferrous metal

Designation	IC	S	RE	LE	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
DCGW 070202 LN-7	6.35	2.38	0.20	3.40	55~	7.00~	0.10	2.00	0.05	0.30	1~	P ~	~	7.70~	D ~	71DD68D301C30 ~	PCD ~	TD1010~	3~	ISO$DC0702023NA$$02 ~	21.50. ~	DCGW ~	Y ~	7 ~	6264326	2	TD1010 TD1020
DCGW 070204 LN-7	6.35	2.38	0.40	3.30	55~	7.00~	0.10	2.00	0.05	0.30	1~	P ~	~	7.70~	D ~	71DD68D301C30 ~	PCD ~	TD1010~	3~	ISO$DC0702043NA$$04 ~	21.51 ~	DCGW ~	Y ~	7 ~	6264328	2	TD1010 TD1020
DCGW 11T302 LN-7	9.52	3.97	0.20	3.90	55~	7.00~	0.10	2.00	0.05	0.30	1~	P ~	~	11.60~	D ~	71DD68D301C30 ~	PCD ~	TD1010~	3~	ISO$DC11T3023NA$$02 ~	32.50. ~	DCGW ~	Y ~	11 ~	6264331	3	TD1030 TD1010 TD1020
DCGW 11T304 LN-7	9.52	3.97	0.40	3.70	55~	7.00~	0.10	2.00	0.05	0.30	1~	P ~	~	11.60~	D ~	71DD68D301C30 ~	PCD ~	TD1010~	3~	ISO$DC11T3043NA$$04 ~	32.51 ~	DCGW ~	Y ~	11 ~	6264334	3	TD1030 TD1010 TD1020
DCGW 11T308 LN-7	9.52	3.97	0.80	3.30	55~	7.00~	0.10	2.00	0.05	0.30	1~	P ~	~	11.60~	D ~	71DD68D301C30 ~	PCD ~	KP300 ~	3~	ISO$DC11T3083NA$$08 ~	32.52 ~	DCGW ~	Y ~	11 ~	6264337	4	TD1030 TD1010 KP300 TD1020
