TaeguTec Cutting Tools - Metal Working Tools - Turning -

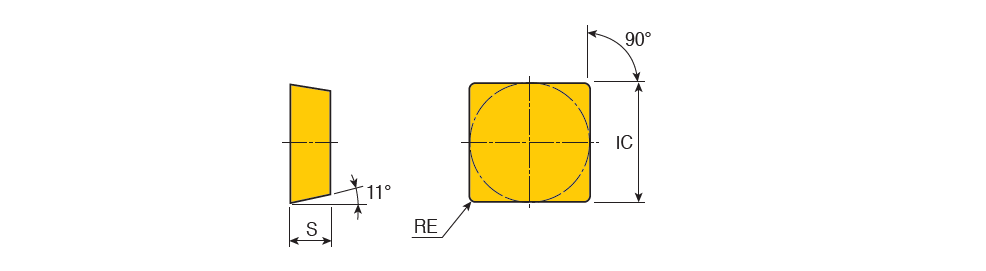

SPUN : Square single sided for medium turning

Designation	IC	S	RE	l	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SPUN 090304	9.52	3.18	0.40	9.52~	90~	11.00~	1.00	3.50	0.10	0.30	4~	~	U ~	S ~	71DD68D829217 ~	Uncoated ~	P20 ~	3~	ISO$SP0903043NA$$04 ~	321 ~	SPU ~	Y ~	9 ~	5501958	1	P20
SPUN 090308	9.52	3.18	0.80	9.52~	90~	11.00~	1.00	3.50	0.15	0.40	4~	~	U ~	S ~	71DD68D829217 ~	Uncoated ~	P30 ~	3~	ISO$SP0903083NA$$08 ~	322 ~	SPU ~	Y ~	9 ~	5502529	1	P30
SPUN 120304	12.70	3.18	0.40	12.70~	90~	11.00~	1.00	5.00	0.10	0.30	4~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8125B ~	3~	ISO$SP1203043NA$$04 ~	421 ~	SPU ~	Y ~	12 ~	6212535	2	P20 TT8125B
SPUN 120308	12.70	3.18	0.80	12.70~	90~	11.00~	1.00	5.00	0.15	0.40	4~	~	U ~	S ~	71DD68D829217 ~	Uncoated ~	K10 ~	3~	ISO$SP1203083NA$$08 ~	422 ~	SPU ~	Y ~	12 ~	5502531	2	P30 K10
SPUN 150404	15.88	4.76	0.40	15.88~	90~	11.00~	1.50	7.00	0.10	0.30	4~	~	U ~	S ~	71DD68D829217 ~	CVD ~	TT5100~	3~	ISO$SP1504043NA$$04 ~	531 ~	SPU ~	Y ~	15 ~	5518289	1	TT5100
SPUN 190412	19.05	4.76	1.20	19.05~	90~	11.00~	1.50	9.00	0.20	0.50	4~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8125B ~	3~	ISO$SP1904123NA$$12 ~	633 ~	SPU ~	Y ~	19 ~	6212307	1	TT8125B
