TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

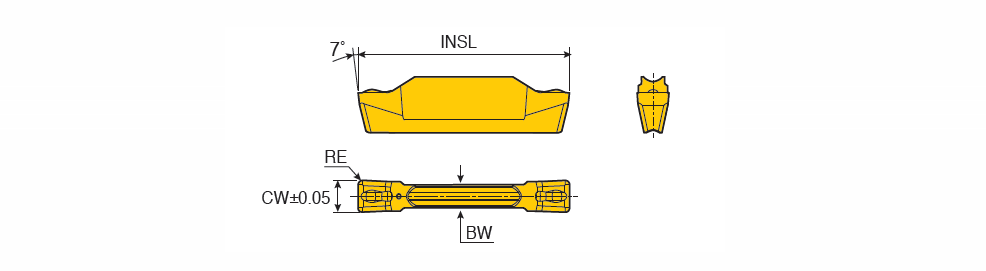

TDXT-E : Pressed double-ended inserts for External, Internal, Face machining with Grooving and Turning

Designation	SSC	CW	RE	BW	INSL	h	S1	SC	R	ft (min)	ft (max)	ap (min)	ap (max)	fg (min)	fg (max)	CB1	W	W+-toler	ClssID	HAND	CEDC	COATP	CBMD	GRDMFG	IIC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TDXT 3E-0.4	3	3.00	0.40	2.2	20.00	4.7~	3.00~	L ~	0.050~	0.15	0.22	0.50	1.80	0.06	0.15	M6E ~	3.00~	0.05~	71DDA089C8D1E ~	N ~	2~	CERMET ~	T ~	CT3000~	IS$$1998818226937442 ~	6402538	6	TT9080 TT5100 K10 TT6080 TT7505 CT3000
TDXT 4E-0.4	4	4.00	0.40	3.0	20.00	4.7~	4.00~	L ~	0.050~	0.18	0.30	0.50	2.40	0.07	0.20	M6E ~	4.00~	0.05~	71DDA089C8D1E ~	N ~	2~	CERMET ~	T ~	CT3000~	IS$$1539718134533175 ~	6402539	6	TT9080 TT5100 K10 TT6080 TT7505 CT3000
TDXT 5E-0.4	5	5.00	0.40	4.0	25.00	5.2~	5.00~	L ~	0.050~	0.20	0.35	0.50	3.00	0.08	0.23	M6E ~	5.00~	0.05~	71DDA089C8D1E ~	N ~	2~	CVD ~	T ~	K10 ~	IS$$1025001670753300 ~	6402540	5	TT9080 TT5100 K10 TT6080 TT7505
TDXT 6E-0.8	6	6.00	0.80	5.0	25.00	5.2~	6.00~	L ~	0.050~	0.24	0.42	1.00	3.60	0.12	0.30	M6E ~	6.00~	0.05~	71DDA089C8D1E ~	N ~	2~	CVD ~	T ~	K10 ~	IS$$884964253522797 ~	6402541	5	TT9080 TT5100 K10 TT6080 TT7505
TDXT 8E-0.8	8	8.00	0.80	6.0	30.00	6.4~	8.00~	L ~	0.050~	0.30	0.56	1.00	4.80	0.15	0.35	M6E ~	8.00~	0.05~	71DDA089C8D1E ~	N ~	2~	CVD ~	T ~	K10 ~	IS$$152138164705254 ~	6402542	5	TT9080 TT5100 K10 TT6080 TT7505
