TaeguTec Cutting Tools - Metal Working Tools - Thread Making -

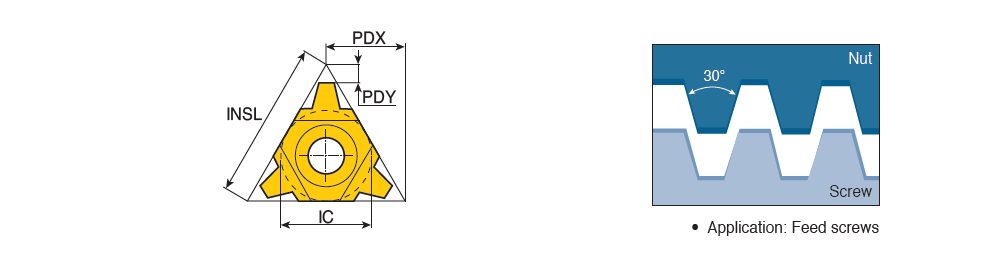

UERL-TR : External Trapeze shaped DIN 103 U-type threading inserts for feed screws

Designation	IC	TP	INSL	PDY	PDX	R	SC	ClssID	GRDMFG	IIC	GICAT	GIREM	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
22UERL 6 TR	12.70	6.00	22.00	2.0	11.0	0.40~	T ~	71DDA089C8D1E ~	TT9030~	IS$$150441238769928 ~	5922175		1	TT9030
22UERL 7 TR	12.70	7.00	22.00	2.3	11.0	0.40~	T ~	41DDA089C8D1E ~	TT7010~	IS$$150441238769928 ~	5922319		2	TT7010 TT9030
22UERL 8 TR	12.70	8.00	22.00	2.5	11.0	0.40~	T ~	71DDA089C8D1E ~	TT7010~	IS$$150441238769928 ~	6187671		1	TT7010
27UERL 8 TR	15.88	8.00	27.00	2.6	13.7	0.40~	T ~	71DDA089C8D1E ~	TT7010~	~	5922209		2	TT7010 TT9030
27UERL 9 TR	15.88	9.00	27.00	3.0	13.7	0.40~	T ~	71DDA089C8D1E ~	TT7010~	~	6101395		2	TT7010 TT9030
27UERL 10 TR	15.88	10.00	27.00	3.2	13.7	0.40~	T ~	71DDA089C8D1E ~	TT9030~	~	5922457	One cutting edge only	1	TT9030

DIN 103 04 / 1977, 150 2901 / 1977 Class 7H (7E)
