TaeguTec Cutting Tools - Metal Working Tools - Turning -

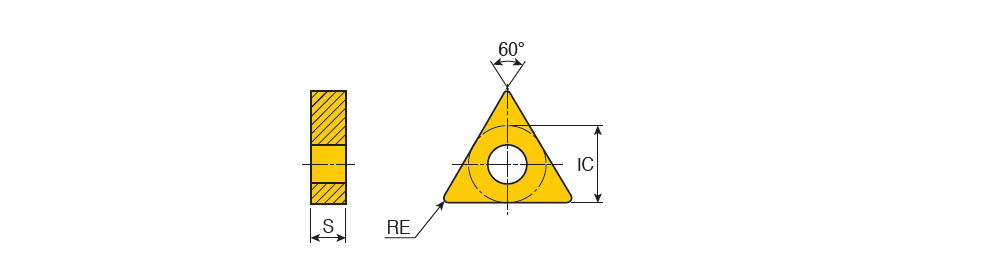

TNMG-MM (RHINO) : Negative 60° Triangular RHINOTURN inserts of general machining of stainless steels & steels

Designation	IC	S	RE	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TNMG 130404 MM	7.94	4.76	0.40	MM ~	60~	0.00~	0.40	3.00	0.15	0.45	6~	~	U ~	13.00~	T ~	71DD68D8446CE ~	RHINO-TURN ~	CVD ~	8115B ~	2~	ISO$TN1304042NB$$04 ~	2.531 ~	TNMG ~	Y ~	~	6247528	6	TT9235 TT9225 TT5100 TT8125B TT9215 TT8115B
TNMG 130408 MM	7.94	4.76	0.80	MM ~	60~	0.00~	0.50	3.00	0.20	0.50	6~	~	U ~	13.00~	T ~	71DD68D8446CE ~	RHINO-TURN ~	CVD ~	8115B ~	2~	ISO$TN1304082NB$$08 ~	2.532 ~	TNMG ~	Y ~	13 ~	6241841	6	TT9080 TT9225 TT5100 TT8125B TT9215 TT8115B
TNMG 130412 MM	7.94	4.76	1.20	MM ~	60~	0.00~	0.70	3.00	0.23	0.50	6~	~	U ~	13.00~	T ~	71DD68D8446CE ~	RHINO-TURN ~	CVD ~	TT9225~	2~	ISO$TN1304122NB$$12 ~	2.533 ~	TNMG ~	Y ~	13 ~	6118460	1	TT9225
