TaeguTec Cutting Tools - Metal Working Tools - Turning -

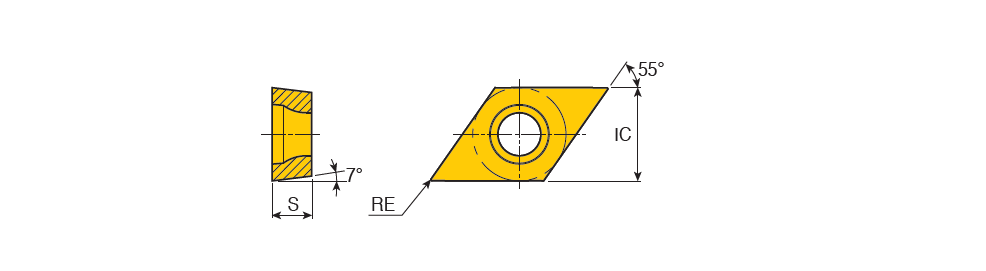

DCMT-FG : Positive 55° Rhombic inserts for finish to medium light applications of steels & stainless steels with 7° clearance angle & excellent chip control

Designation	IC	S	RE	D1	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
DCMT 070204 FG	6.35	2.38	0.40	2.80~	7.70~	FG ~	55~	7.00~	0.40	1.50	0.07	0.20	2~	~	U ~	D ~	71DD68D301C30 ~	Cermet ~	8105B ~	3~	ISO$DC0702043NB$$04 ~	21.51 ~	DCMT ~	Y ~	~	6241828	12	TT8020 TT8080 TT9235 TT9080 TT9225 TT5100 TT8125B TT5080 TT8115B TT8105B CT3000 PV3010
DCMT 070208 FG	6.35	2.38	0.80	2.80~	7.70~	FG ~	55~	7.00~	0.40	2.00	0.07	0.20	2~	~	U ~	D ~	71DD68D301C30 ~	Cermet ~	8115B ~	3~	ISO$DC0702083NB$$08 ~	21.52 ~	DCMT ~	Y ~	7 ~	6236955	8	TT8020 TT8080 TT9225 TT5100 TT8125B TT8115B CT3000 PV3010
DCMT 11T304 FG	9.52	3.97	0.40	0.00~	11.60~	FG ~	55~	7.00~	0.60	1.50	0.10	0.25	2~	~	U ~	D ~	71DD68D301C30 ~	Cermet ~	8105B ~	3~	ISO$DC11T3043NB$$04 ~	32.51 ~	DCMT ~	Y ~	11 ~	6342017	18	TT8020 TT8080 TT9235 TT9080 TT9225 TT3020 TT5100 TT8125B TT3010 TT5080 TT9215 TT3005 TT8105B TT8105B TT7015 TT7005 CT3000 PV3010
DCMT 11T308 FG	9.52	3.97	0.80	4.40~	11.60~	FG ~	55~	7.00~	0.60	2.00	0.10	0.20	2~	~	U ~	D ~	71DD68D301C30 ~	Cermet ~	8115B ~	3~	ISO$DC11T3083NB$$08 ~	32.52 ~	DCMT ~	Y ~	11 ~	6342038	16	TT8020 TT8080 TT9235 TT9080 TT9225 TT3020 TT5100 TT8125B TT3010 TT5080 TT3005 TT8115B TT7015 TT7005 CT3000 PV3010

Click the Better Suggestions icon to see more choices.
