TaeguTec Cutting Tools - Metal Working Tools - Thread Making -

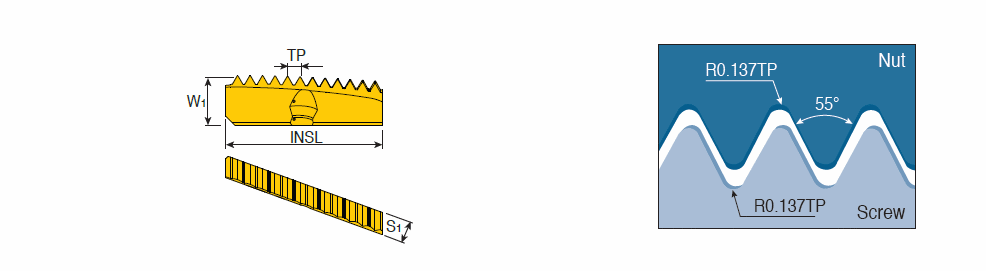

TMTH-W (Int & Ext) : External & internal Whitworth (BSW, BSF, BSP) full profile thread milling inserts, for fittings and pipe couplings.

Designation	TPI	THID	THOD	INSL	W1	S1	TP	Insert	SC	ClssID	CEDC		THFT_2	THFT	TTP	TTP_DF2	ZAX	GRDMFG	IIC	GICAT	giic	Grade & Vc Click on grade for cutting speed value
TMTH 32 11 W	11.0	>=G1_1/8"	>G1"	32.00	9.00	4.00	2.31	TMTH32 ~	L ~	71E01A05B627B ~	0~	0.00~	~	WH55 ~	BOTH ~	~	13~	TT9030~	IS$$96248524205120 ~	6214600	1	TT9030
TMTH 45 11 W	11.0	>=G1_3/4"	>G1"	37.00	11.90	5.00	2.31	TMTH45 ~	L ~	71E01A05B627B ~	0~	0.00~	~	WH55 ~	BOTH ~	~	16~	TT9030~	IS$$96248524205120 ~	6214610	1	TT9030
TMTH 23 11 W	11.0	>=G1"	>G1"	27.00	8.00	3.50	2.31	TMTH23 ~	L ~	71E01A05B627B ~	1~	0.01~	BSP(G) ~	WH55 ~	BOTH ~	~	11~	TT9030~	IS$$96248524205120 ~	5616107	1	TT9030
TMTH 63 11 W	11.0	>=G2_1/2"/2	>G1"	38.00	11.90	5.00	2.31	TMTH63 ~	L ~	71E01A05B627B ~	1~	0.06~	BSP(G) ~	WH55 ~	BOTH ~	~	16~	TT9030~	IS$$96248524205120 ~	6214620	1	TT9030
