TaeguTec Cutting Tools - Metal Working Tools - Thread Making -

TMTH-BSPT (Int & Ext) : Helical external & internal thread milling inserts for BSPT full profile thread. Used on steam, gas and water pipes.

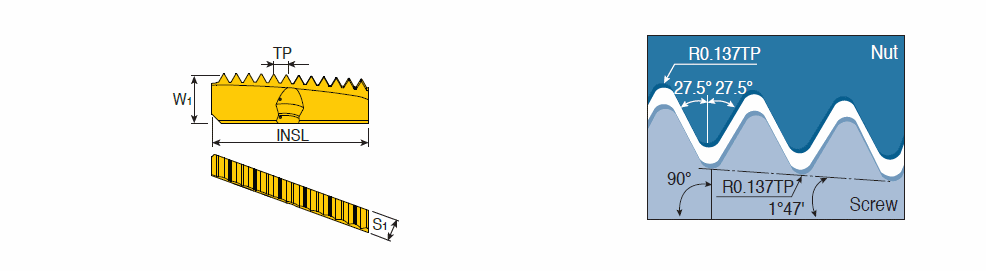

Designation	TPI	INSL	W1	S1	TP	Insert	0	0	fz (min)	fz (max)	0	SC	THFT	ZAX	GRDMFG	IIC	GICAT	giic	Grade & Vc Click on grade for cutting speed value
TMTH 23 11 BSPT	11.0	27.00	8.00	3.50	2.31	TMTH23 ~	0.00~	0.00~	0.000~	0.000~	~	L ~	BSPT55 ~	11~	TT9030~	IS$$96248524205120 ~	5616200	1	TT9030
TMTH 32 11 BSPT	11.0	32.00	9.00	4.00	2.31	TMTH32 ~	0.00~	0.00~	0.000~	0.000~	~	L ~	BSPT55 ~	13~	TT9030~	IS$$96248524205120 ~	6214599	1	TT9030
TMTH 45 11 BSPT	11.0	37.00	11.90	5.00	2.31	TMTH45 ~	0.00~	0.00~	0.000~	0.000~	~	L ~	BSPT55 ~	16~	TT9030~	IS$$96248524205120 ~	6214609	1	TT9030
TMTH 63 11 BSPT	11.0	38.00	11.90	5.00	2.31	TMTH63 ~	0.00~	0.00~	0.000~	0.000~	~	L ~	BSPT55 ~	16~	TT9030~	IS$$96248524205120 ~	6214619	1	TT9030
