TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

LM90SE-R-21 : 90° Face mills with unique wedge clamping of positive strong inserts SEKX 21 for heavy machining in maximum depth of cut19 mm

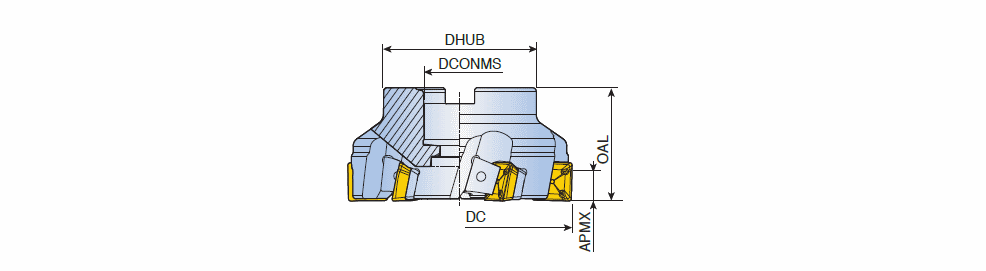

Designation	Tool sty	DC	CICT	DCONMS	DHUB	OAL	APMX		Arbor		S1	KAPR	HAND	RMPX	PD	Insert	Mtg. Ref	ClssID	MIID	CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	ZNP	GICAT	GIREM	giic	GICODE
LM90SE 8160-50.8R-21	FACE MILL ~	160.00	8	50.80	110.00	63.00	17.00	X ~	B	5.30	21.00~	90.0~	~	0.00~	C ~	LM-SE21 ~		71E01A05B627B ~	SEKX 2107 PETR-M	FDA ~	02 ~	IS$$74519737894878 ~	63.00~	8~	8~	8~	6104086		0
LM90SE 10200-47.625R-21	FACE MILL ~	200.00	10	47.63	130.00	80.00	17.00	X ~	C	9.60	21.00~	90.0~	~	0.00~	C ~	LM-SE21 ~		71E01A05B627B ~	SEKX 2107 PETR-M	SPK ~	02 ~	IS$$74519737894878 ~	80.00~	10~	10~	10~	6104087		0
