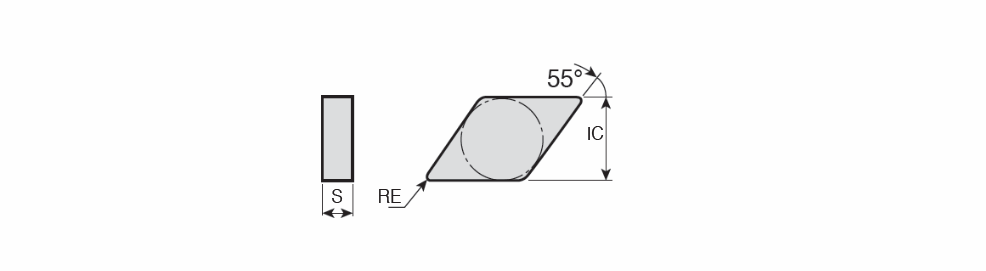

DNGX-CERAMIC : Negative 55° Rhombic ground Ceramic Dimple inserts for cast iron roughing

Designation	IC	S	RE	l	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
DNGX 120712 T7-CH	10.00	7.94	1.20	12.90~	55~	0.00~	0.10	3.00	0.05	0.30	4~	P ~	~	D ~	71DD68D301C30 ~	Ceramic ~	AS10 ~	2~	ISO$DN1207122NA$$12 ~	120712 ~	DNGX ~	Y ~	12 ~	5702295	1	AS10
DNGX 150708 T7-CH	12.70	7.94	0.80	15.50~	55~	0.00~	0.10	3.00	0.05	0.25	4~	P ~	~	D ~	71DD68D301C30 ~	Ceramic ~	AS10 ~	2~	ISO$DN1507082NA$$08 ~	452 T7 ~	DNGX ~	Y ~	15 ~	5701836	1	AS10
DNGX 150712 CH	12.70	7.94	1.20	15.50~	55~	0.00~	0.10	3.00	0.05	0.30	4~	P ~	~	D ~	71DD68D301C30 ~	Ceramic ~	AS10 ~	2~	ISO$DN1507122NA$$12 ~	453 CH ~	DNGX ~	Y ~	15 ~	6342630	2	AS10 SC10
DNGX 150712 T7-CH	12.70	7.94	1.20	15.50~	55~	0.00~	0.10	3.00	0.05	0.30	4~	P ~	~	D ~	71DD68D301C30 ~	Ceramic ~	AS500 ~	2~	ISO$DN1507122NA$$12 ~	453 T7 ~	DNGX ~	Y ~	15 ~	5703242	1	AS500
DNGX 150716 CH	12.70	7.94	1.60	15.50~	55~	0.00~	0.10	3.50	0.05	0.35	4~	P ~	~	D ~	71DD68D301C30 ~	Ceramic ~	AS10 ~	2~	ISO$DN1507162NA$$16 ~	454 CH ~	DNGX ~	Y ~	15 ~	5701723	1	AS10
DNGX 150716 T7-CH	12.70	7.94	1.60	15.50~	55~	0.00~	0.10	3.50	0.05	0.35	4~	P ~	~	D ~	71DD68D301C30 ~	Ceramic ~	AS10 ~	2~	ISO$DN1507162NA$$16 ~	454 T7 ~	DNGX ~	Y ~	15 ~	5702162	1	AS10

T7: Land 0.20 x 20°
CH : Dimple type
