TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

SEKX 21 : Thicker positive square inserts of 4 cutting edges with 90° face mills for heavy industry

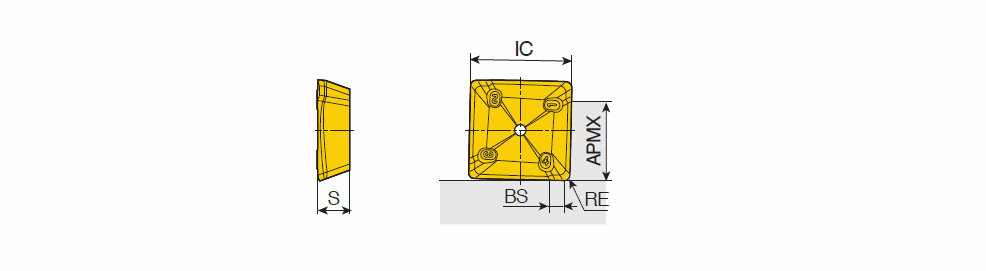

Designation	IC	S	BS	RE	APMX	S1	CEDC	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
SEKX 2107 PETL-M	21.85	7.00	2.00	1.20	17.00	21.00~	4~	LM-SE21 ~	5.00	13.60	0.250	0.150	M8 ~	S ~	71DD68D829217 ~	U60 ~	M ~	8525B ~	IS$$74519737894878 ~	SEKX 21 ~	0~	6338312		1		TT8525B
SEKX 2107 PETR-M	21.85	7.00	2.00	1.20	17.00	21.00~	4~	LM-SE21 ~	5.00	13.60	0.250	0.150	M8 ~	S ~	71DD68D829217 ~	U60 ~	M ~	8525B ~	IS$$74519737894878 ~	SEKX 21 ~	0~	6338311		1		TT8525B
