TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

TFM90SD-R-05 : 90° Face mills for small part machining with SDMT 05 inserts of 4 cutting edges

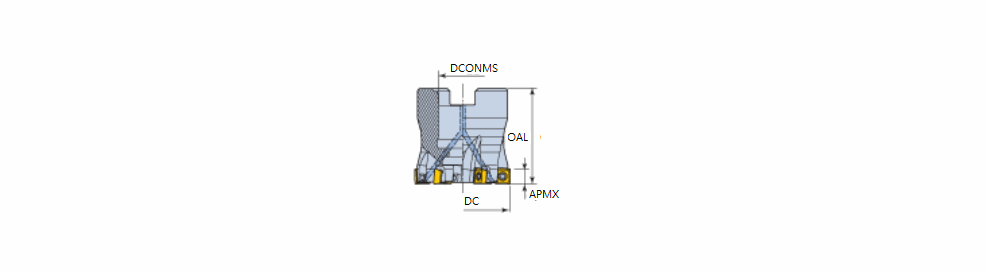

Designation	Tool sty	DC	CICT	DCONMS	OAL	APMX		S1	D3	RMPX	KAPR	HAND	Arbor	PD	Insert	Mtg. Ref	ClssID	MIID	IIC	LTA	ZEFF	ZEFP	GICAT	GIREM	giic	GICODE
TFM90SD 632-16R-05	FACE MILL ~	32.00	6	16.00	32.00	4.50	0.10	5.00~	30.00~	0.00~	90.0~	~	A ~	XF ~	CQ-SD05 ~	SH M8X1.25X20 ~	71E01A05B627B ~	SDMT 050204-M	IS$$229704454023400 ~	32.00~	6~	6~	6162129		0
TFM90SD 840-22R-05	FACE MILL ~	40.00	8	22.00	40.00	4.50	0.20	5.00~	38.00~	0.00~	90.0~	~	A ~	XF ~	CQ-SD05 ~	SH M10X1.5X30 ~	71E01A05B627B ~	SDMT 050204-M	IS$$229704454023400 ~	40.00~	8~	8~	6162130		0
