TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

TEF-AX06 : Extended flute end mills with high positive AXMT 06 inserts in full effectiveness

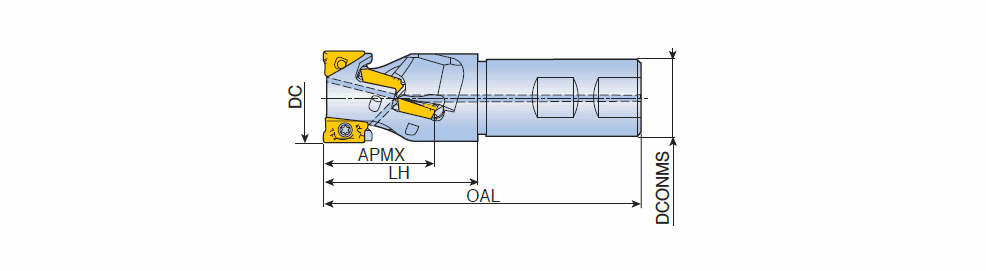

Designation	Tool sty	DC	NOF	CICT	DCONMS	OAL	LH	APMX		S1	Shank	RMPX		KAPR	HAND	Arbor	PD	Insert	ClssID	MIID	CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	GICAT
TEF D16-16-W16-AX06	EXTENDED FLUTE ~	16.00	2	6	16.00	80.00	28.00	16.00	X	6.00~	W ~	4.00~	0.11	90.0~	~	~	C ~	CM-AX06 ~	71E01A05D27A8 ~	AXMT 0602 PER-EM	ZYL ~	10 ~	IS$$626393237363630 ~	32.00~	2~	2~	6162087
TEF D20-21-W20-AX06	EXTENDED FLUTE ~	20.00	3	12	20.00	85.00	33.00	21.00	O	6.00~	W ~	3.00~	0.18	90.0~	~	~	C ~	CM-AX06 ~	71E01A05D27A8 ~	AXMT 0602 PER-EM	ZYL ~	10 ~	IS$$626393237363630 ~	35.00~	3~	3~	6162088
TEF D25-26-W25-AX06	EXTENDED FLUTE ~	25.00	4	20	25.00	95.00	38.00	26.00	O	6.00~	W ~	2.00~	0.31	90.0~	~	~	C ~	CM-AX06 ~	71E01A05D27A8 ~	AXMT 0602 PER-EM	ZYL ~	10 ~	IS$$626393237363630 ~	39.00~	4~	4~	3104047
