TE90SD-M-05 : 90° Modular end mills with T-FLEXTEC adaptation & positive square inserts SDMT 05 of 4 cutting edges for small parts machining

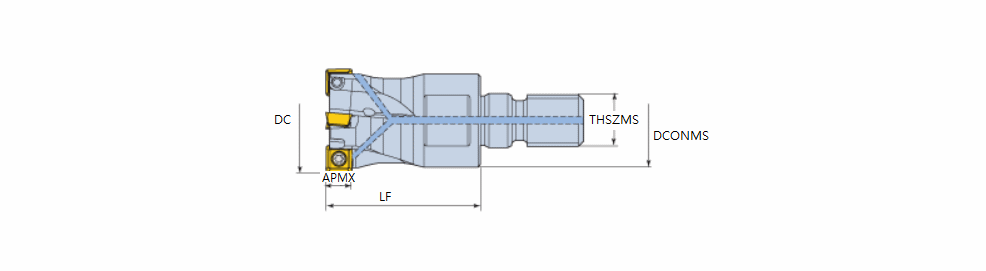

Designation	Tool sty	DC	CICT	DCONMS	LF	THSZMS	APMX	S1	RMPX		KAPR	HAND	Arbor	PD	Insert	ClssID	MIID	CCTMS	CCFMS	IIC	LTA	TQ_3	ZEFF	ZEFP	GICAT	GIREM	giic	GICODE
TE90SD 316-M08-05	MODULAR ~	16.00	3	13.00	23.00	M08	4.50	5.00~	0.00~	0.03	90.0~	~	~	RF ~	CQ-SD05 ~	71E01A05D27A8 ~	SDMT 050204-M	SAI ~	02 ~	IS$$229704454023400 ~	23.00~	0~	3~	3~	6162126		0
TE90SD 420-M10-05	MODULAR ~	20.00	4	18.00	30.00	M10	4.50	5.00~	0.00~	0.06	90.0~	~	~	F ~	CQ-SD05 ~	71E01A05D27A8 ~	SDMT 050204-M	SAI ~	02 ~	IS$$229704454023400 ~	30.00~	0~	4~	4~	6162127		0
