TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

TDM-09/11/14 : Drilling & milling end mills with SPMT and SPMG 09/11/14 milling inserts

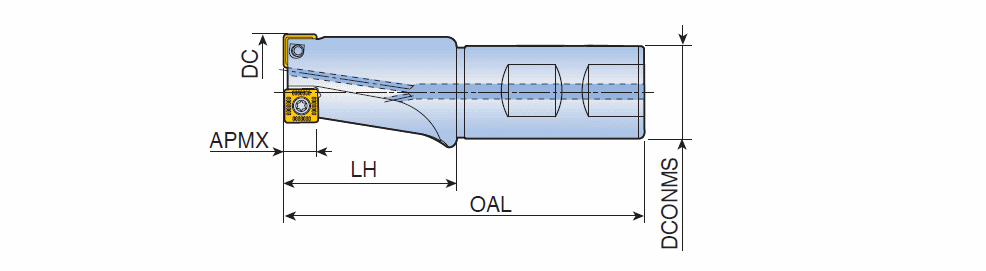

Designation	Tool sty	DC	CICT	LU	DCONMS	OAL	APMX	Cd	S1	Shank	RMPX		KAPR	HAND	Arbor	PD	Insert	ClssID	MIID		AE	CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	GICAT
TDM 225 W25-09	ENDMILL ~	25.00	2	50.00	25.00	110.00	9.00	30.00	9.00~	W ~	0.00~	0.34	90.0~	~	~	C ~	CQ-SP09 ~	71E01A05D27A8 ~	SPMG 090408-EM	O ~	0.0~	ZYL ~	10 ~	IS$$48090016923861 ~	54.00~	2~	2~	3101261
TDM 228 W32-09	ENDMILL ~	28.00	2	60.00	32.00	125.00	9.00	38.00	9.00~	W ~	0.00~	0.56	90.0~	~	~	C ~	CQ-SP09 ~	71E01A05D27A8 ~	SPMG 090408-EM	O ~	0.0~	ZYL ~	10 ~	IS$$48090016923861 ~	65.00~	2~	2~	3101401
TDM 232 W32-11	ENDMILL ~	32.00	2	60.00	32.00	125.00	10.70	38.00	11.00~	W ~	0.00~	1.29	90.0~	~	~	C ~	CQ-SP11 ~	71E01A05D27A8 ~	SPMG 110408-EM	O ~	0.0~	ZYL ~	10 ~	IS$$153644533141008 ~	65.00~	2~	2~	3101262
TDM 240 W32-11	ENDMILL ~	40.00	2	60.00	32.00	125.00	10.70	38.00	11.00~	W ~	0.00~	0.72	90.0~	~	~	C ~	CQ-SP11 ~	71E01A05D27A8 ~	SPMG 110408-EM	O ~	0.0~	ZYL ~	10 ~	IS$$153644533141008 ~	65.00~	2~	2~	3101402
TDM 245 W32-14	ENDMILL ~	45.00	2	66.00	32.00	130.00	13.40	40.00	14.00~	W ~	0.00~	0.83	90.0~	~	~	C ~	CQ-SP14 ~	71E01A05D27A8 ~	SPMG 140508-EM	O ~	0.0~	ZYL ~	10 ~	IS$$57708816713658 ~	70.00~	2~	2~	3101403
TDM 250 W32-14	ENDMILL ~	50.00	2	66.00	32.00	150.00	13.40	40.00	14.00~	W ~	0.00~	1.06	90.0~	~	~	C ~	CQ-SP14 ~	71E01A05D27A8 ~	SPMG 140508-EM	O ~	0.0~	ZYL ~	10 ~	IS$$57708816713658 ~	90.00~	2~	2~	3101263
