TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

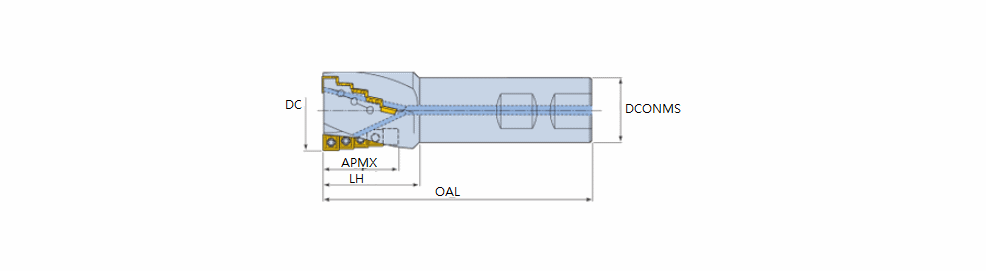

TEF-SD05 : Extended flute end mills with SDMT 05 inserts of 4 cutting edges

Designation	Tool sty	DC	CICT	NOF	DCONMS	OAL	LH	APMX	S1	Shank	RMPX		KAPR	HAND	Arbor	PD	Insert	ClssID	MIID	CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	GICAT	GIREM	giic	GICODE
TEF D20-20-W20-SD05	EXTENDED FLUTE ~	20.00	10	2	20.00	85.00	32.00	20.00	5.00~	W ~	0.00~	0.17	90.0~	~	~	C ~	CQ-SD05 ~	71E01A05D27A8 ~	SDMT 050204-M	ZYL ~	10 ~	IS$$229704454023400 ~	35.00~	2~	2~	3104453		0
TEF D25-24-W25-SD05	EXTENDED FLUTE ~	25.00	18	3	25.00	95.00	36.00	25.00	5.00~	W ~	0.00~	0.30	90.0~	~	~	C ~	CQ-SD05 ~	71E01A05D27A8 ~	SDMT 050204-M	ZYL ~	10 ~	IS$$229704454023400 ~	39.00~	3~	3~	6162131		0
