TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

TES-11/14 : Extended flute shell mill with positive SPMT or SPMG 11/14 inserts of 4 cutting edges in full effectiveness

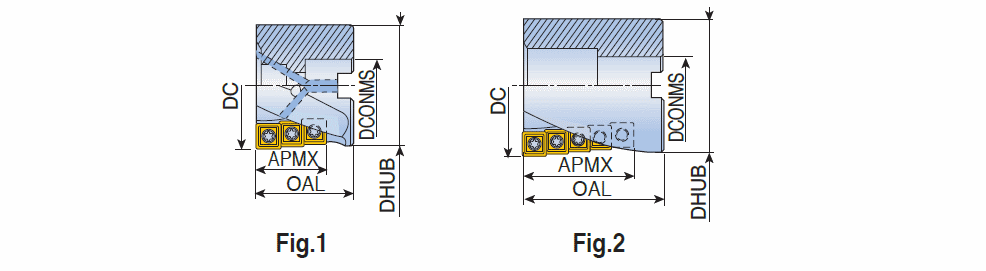

Designation	Tool sty	DC	NOF	CICT	DCONMS	DHUB	OAL	APMX		Arbor	Fig.		S1	RMPX	KAPR	HAND	PD	Insert	Mtg. Ref	ClssID	MIID	CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	GICAT
TES D50-29-22-11	EXTENDED FLUTE ~	50.00	3	9	22.00	47.30	52.00	29.00	O	A	1	0.38	11.00~	0.00~	90.0~	~	C ~	CQ-SP11 ~	~	71E01A05B627B ~	SPMT 110408-EM	FDA ~	02 ~	IS$$153644533141008 ~	52.00~	3~	3~	3101410
TES D63-35-27-11	EXTENDED FLUTE ~	63.00	4	16	27.00	60.50	55.00	35.00	O	A	1	0.63	11.00~	0.00~	90.0~	~	C ~	CQ-SP11 ~	~	71E01A05B627B ~	SPMT 110408-EM	FDA ~	02 ~	IS$$153644533141008 ~	55.00~	4~	4~	3101411
TES D80-47-32-14	EXTENDED FLUTE ~	80.00	4	16	32.00	77.20	65.00	47.00	O	A	1	1.31	14.00~	0.00~	90.0~	~	C ~	CQ-SP14 ~	~	71E01A05B627B ~	SPMT 140508-EM	FDA ~	02 ~	IS$$57708816713658 ~	65.00~	4~	4~	3101412
TES D100-60-40-14	EXTENDED FLUTE ~	100.00	5	25	40.00	97.10	88.00	60.00	X	B	2	2.65	14.00~	0.00~	90.0~	~	C ~	CQ-SP14 ~	~	71E01A05B627B ~	SPMT 140508-EM	FDA ~	02 ~	IS$$57708816713658 ~	88.00~	5~	5~	3101413

Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
