TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

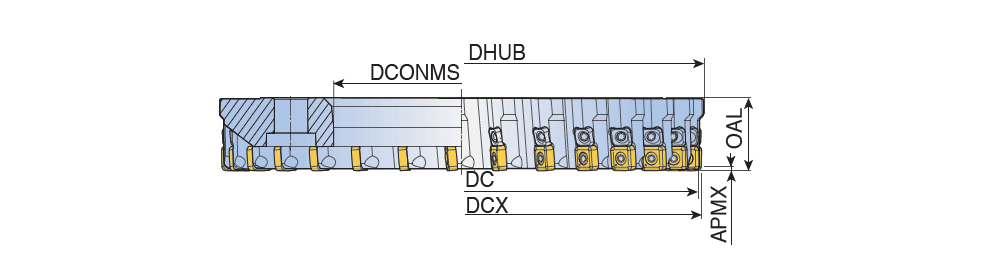

TQ90SNS-R-12 : Ring type quick change cutters with adjustable pockets and precision ground wiper SN 12 inserts for cast iron finishing

Designation	Tool sty	DC	CICT	DCONMS	OAL	DCX	DHUB	d1	APMX		S1	Adaptor	KAPR	HAND	PD	Insert	ClssID	MIID	IIC	LTA	ZEFF	ZEFP	ZNP	GICAT
TQ90SNS 30250R-12	QUICK CHANGE ~	243.35	30	133.35	38.00	250.00	253.00	177.80	1.00	7.50	12.00~	QA 10K/M	90.0~	~	F ~	C2Q-SN12 ~	71E01A05B627B ~	SNEX 1204-W	IS$$392518524851705 ~	38.00~	30~	30~	30~	3105446
TQ90SNS 36315R-12	QUICK CHANGE ~	308.35	36	146.05	38.00	315.00	317.00	215.90	1.00	14.00	12.00~	QA 12K/M	90.0~	~	XF ~	C2Q-SN12 ~	71E01A05B627B ~	SNEX 1204-W	IS$$392518524851705 ~	38.00~	36~	36~	36~	6162277
TQ90SNS 32400R-12	QUICK CHANGE ~	393.35	32	254.00	38.00	400.00	402.00	304.80	1.00	16.00	12.00~	QA 16K/M	90.0~	~	XF ~	C2Q-SN12 ~	71E01A05B627B ~	SNEX 1204-W	IS$$392518524851705 ~	38.00~	32~	32~	32~	3106217

Recommend to do very stable machining condition at cast iron for better finishing
