TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

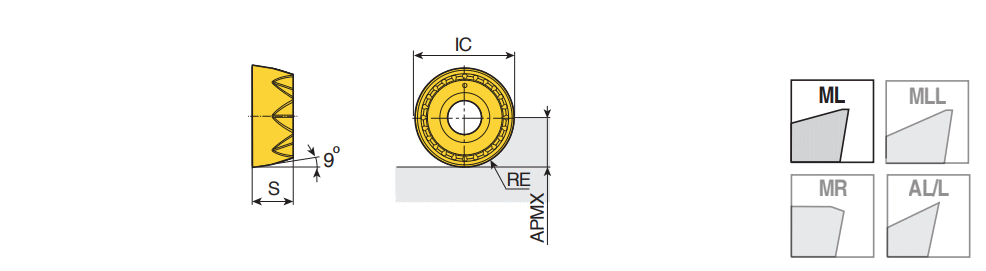

RYHX 08/10/12/16-ML : Positive ground strong round inserts with sharp cutting edges for exotic materials machining

TT3540&TT9540 : Available upon customer request.

Designation	IC	RE	S	APMX	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	Insert	SC	ClssID	CEDC	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
RYHX 0803-ML	8.00	4.00	3.20	4.00	8.00~	1.00	3.50	0.250	0.050	M7.5 ~	CM-RY08 ~	R ~	71D1AA6635E76 ~	4~	U40 ~	ML ~	TT8020~	IS$$202464796085370 ~	RYM(H)X 08 ~	0~	5630168		1		TT8020
