TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

AXCT 0602 R-AL : High positive ground inserts with 2 cutting edges & polished top of AXCT 06 for machining of aluminum & non-ferrous materials in 90° shoulders

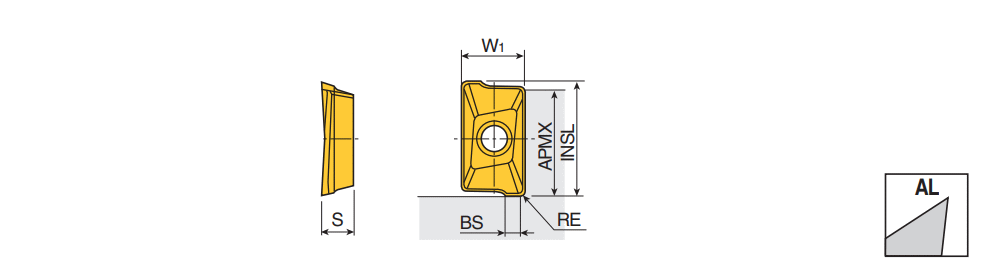

Designation	INSL	W1	S	BS	RE	APMX	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	CEDC	Insert	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	giic	Grade & Vc Click on grade for cutting speed value
AXCT 060202R-AL	6.70	4.20	2.60	0.83	0.20	5.50	6.00~	1.50	5.00	0.200	0.100	M4 ~	2~	CM-AX06 ~	A ~	71DD68D91938A ~	G10 ~	AL ~	K10 ~	IS$$626393237363630 ~	AXCT 06 ~	0~	5613041	1	K10
AXCT 060204R-AL	6.70	4.20	2.60	0.83	0.40	5.50	6.00~	1.50	5.00	0.200	0.100	M4 ~	2~	CM-AX06 ~	A ~	71DD68D91938A ~	G10 ~	AL ~	K10 ~	IS$$626393237363630 ~	AXCT 06 ~	0~	5613042	1	K10
AXCT 060208R-AL	6.70	4.20	2.60	0.23	0.80	5.50	6.00~	1.50	5.00	0.200	0.100	M4 ~	2~	CM-AX06 ~	A ~	71DD68D91938A ~	G10 ~	AL ~	K10 ~	IS$$626393237363630 ~	AXCT 06 ~	0~	5613043	1	K10
