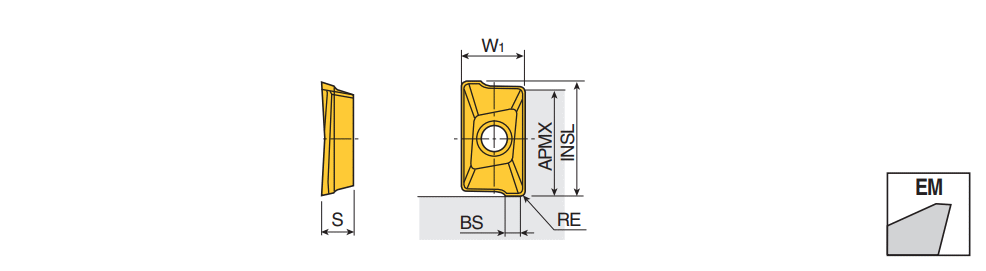

AXMT 0602 PER-EM : High positive inserts with two helical cutting edges for 90° shoulders & general machining of small parts

Designation	INSL	W1	BS	S	RE	APMX	S1	S2	CEDC	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
AXMT 0602 PER-EM	6.70	4.15	0.76	2.60	0.20	5.50	6.00~	2 ~	2~	CM-AX06 ~	1.50	5.00	0.130	0.070	M8 ~	A ~	71DD68D91938A ~	U60 ~	EM ~	TT2510~	IS$$626393237363630 ~	AXMT 06 ~	0~	6126941		5		TT8020 TT8080 TT9030 TT9080 TT2510
