TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

AXMT 0602 R-EM : Various corner radii inserts with two helical cutting edges of AXMT 06 for 90° shoulders and general machining of small parts

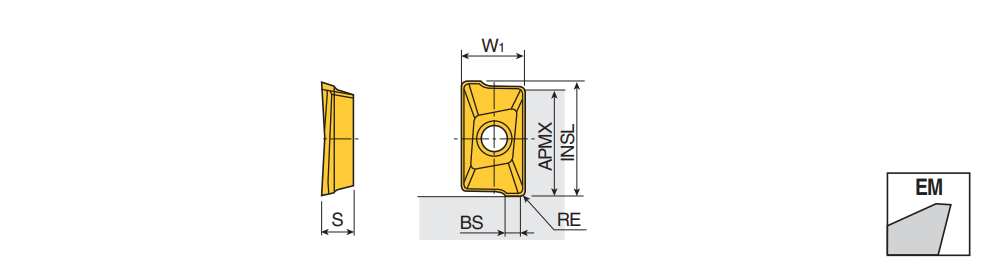

Designation	INSL	W1	BS	S	RE	APMX	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	CEDC	Insert	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
AXMT 060204R-EM	6.70	4.15	0.54	2.60	0.40	5.50	6.00~	1.50	5.00	0.130	0.070	M8 ~	2~	CM-AX06 ~	A ~	71DD68D91938A ~	U60 ~	EM ~	TT2510~	IS$$626393237363630 ~	AXMT 06 ~	0~	6126943	6	TT8020 TT8080 TT9030 TT9080 TT6080 TT2510
AXMT 060208R-EM	6.70	4.15	0.40	2.60	0.80	5.50	6.00~	1.50	5.00	0.130	0.070	M8 ~	2~	CM-AX06 ~	A ~	71DD68D91938A ~	U60 ~	EM ~	TT2510~	IS$$626393237363630 ~	AXMT 06 ~	0~	6252106	7	TT8020 TT8080 TT3535 TT9030 TT9080 TT6080 TT2510
AXMT 060216R-EM	6.70	4.15	-	2.60	1.60	5.50	6.00~	1.50	5.00	0.130	0.070	M8 ~	2~	CM-AX06 ~	A ~	71DD68D91938A ~	U60 ~	EM ~	TT2510~	IS$$626393237363630 ~	AXMT 06 ~	0~	6126945	5	TT8020 TT8080 TT9030 TT9080 TT2510
AXMT 060220R-EM	6.70	4.15	-	2.60	2.00	5.50	6.00~	1.50	5.00	0.130	0.070	M8 ~	2~	CM-AX06 ~	A ~	71DD68D91938A ~	U60 ~	EM ~	TT8080~	IS$$626393237363630 ~	AXMT 06 ~	0~	5616007	2	TT8080 TT9080
