TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

APKT 1204 R-EM : Various corner radii inserts of APKT 12 with two helical cutting edges for general machining

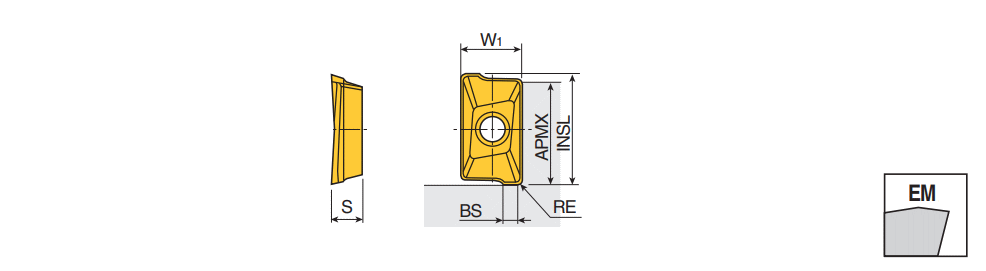

Designation	INSL	W1	S	RE	APMX	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	CEDC	Insert	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
APKT 120440R-EM	13.20	8.30	4.57	4.00	11.80	12.00~	3.50	10.00	0.140	0.070	M8 ~	2~	CM-AP12 ~	A ~	71DD68D91938A ~	U60 ~	EM ~	TT2510~	IS$$767790992606676 ~	APKT 12 ~	0~	6126925	3	TT8080 TT9080 TT2510
APKT 120432R-EM	13.30	8.30	4.60	3.20	12.00	12.00~	3.50	10.00	0.140	0.070	M8 ~	2~	CM-AP12 ~	A ~	71DD68D91938A ~	U60 ~	EM ~	TT2510~	IS$$767790992606676 ~	APKT 12 ~	0~	6126924	4	TT8020 TT9030 TT6080 TT2510
APKT 120430R-EM	13.60	8.30	4.60	3.00	12.00	12.00~	3.50	10.00	0.140	0.070	M8 ~	2~	CM-AP12 ~	A ~	71DD68D91938A ~	U60 ~	EM ~	TT2510~	IS$$767790992606676 ~	APKT 12 ~	0~	6126923	7	TT8020 TT8080 TT7080 TT9030 TT9080 TT6080 TT2510
APKT 120424R-EM	13.80	8.30	4.76	2.40	12.00	12.00~	3.50	10.00	0.140	0.070	M8 ~	2~	CM-AP12 ~	A ~	71DD68D91938A ~	U60 ~	EM ~	TT2510~	IS$$767790992606676 ~	APKT 12 ~	0~	6126922	4	TT8020 TT8080 TT9030 TT2510
APKT 120404R-EM	14.60	8.30	4.76	0.40	12.00	12.00~	3.50	10.00	0.140	0.070	M8 ~	2~	CM-AP12 ~	A ~	71DD68D91938A ~	U60 ~	EM ~	TT2510~	IS$$767790992606676 ~	APKT 12 ~	0~	6173466	5	TT8020 TT7080 TT9030 TT6080 TT2510
APKT 120416R-EM	14.60	8.30	4.76	1.60	12.00	12.00~	3.50	10.00	0.140	0.070	M8 ~	2~	CM-AP12 ~	A ~	71DD68D91938A ~	U60 ~	EM ~	TT6080~	IS$$767790992606676 ~	APKT 12 ~	0~	5615402	5	TT8020 TT8080 TT9030 TT9080 TT6080
