Home Page > Milling & Solid End mills > > HNEN 10T

Milling & Solid End mills
Main Application

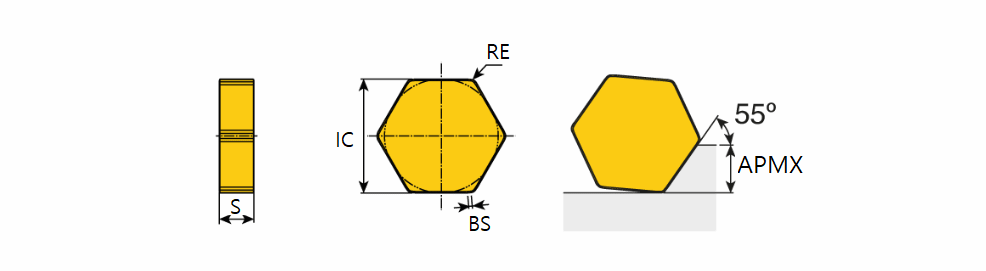

HNEN 10T : HEXA2MILL ceramic grade insert.

Designation	IC	S	BS	RE	APMX	S1	CEDC	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	ESP	GRDMFG	Pocket	WEP	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
HNEN 100510 T	19.05	5.80	0.60	1.00	8.00	10.00~	12~	H2M-HN10 ~	0.50	5.00	0.250	0.125	M10 ~	H ~	71DD68D7A8E5F ~	C50 ~	AS10 ~	HNEN 10 ~	0~	5701595		1		AS10
