TaeguTec Cutting Tools - Metal Working Tools

HSR 2 (6.0-12.0) : High precision solid carbide end mills of corner R type with long neck & 2 flute for high speed machining of hardened steel & pre-hardened steel

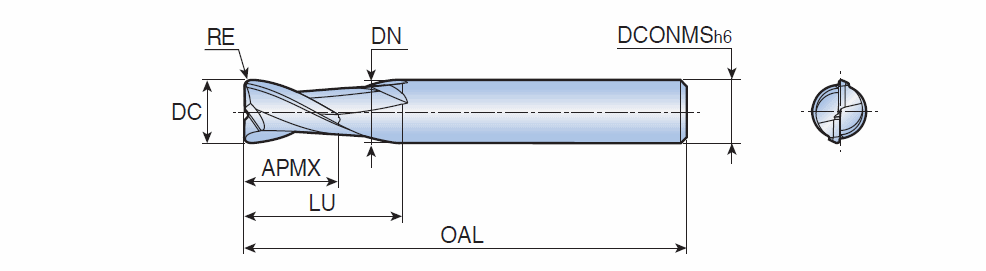

Designation	Tool sty	DC	RE	OAL	APMX	LU	DN	DCONMS	FHA	Shank	RMPX	fz (min)	fz (max)	NOF	ClssID	CCTMS	CCFMS	LTA	GICAT	giic	Grade
HSR 2060 020 150	SOLID TYPE ~	6.00	0.20	60.00	9.00	15.0	5.90	6.00	30.0~	C ~	3.00~	0.067	0.100	2~	71E01A05D27A8 ~	ZYL ~	01 ~	24.00~	6110296	1	TT5505
HSR 2060 030 150	SOLID TYPE ~	6.00	0.30	60.00	9.00	15.0	5.90	6.00	30.0~	C ~	3.00~	0.067	0.100	2~	71E01A05D27A8 ~	ZYL ~	01 ~	24.00~	6127334	1	TT5505
HSR 2060 030 200	SOLID TYPE ~	6.00	0.30	60.00	9.00	20.0	5.90	6.00	30.0~	C ~	3.00~	0.067	0.100	2~	71E01A05D27A8 ~	ZYL ~	01 ~	24.00~	6127335	1	TT5505
HSR 2060 050 150	SOLID TYPE ~	6.00	0.50	60.00	9.00	15.0	5.90	6.00	30.0~	C ~	3.00~	0.067	0.100	2~	71E01A05D27A8 ~	ZYL ~	01 ~	24.00~	6127336	1	TT5505
HSR 2060 050 200	SOLID TYPE ~	6.00	0.50	60.00	9.00	20.0	5.90	6.00	30.0~	C ~	3.00~	0.067	0.100	2~	71E01A05D27A8 ~	ZYL ~	01 ~	24.00~	6127337	1	TT5505
HSR 2060 100 150	SOLID TYPE ~	6.00	1.00	60.00	9.00	15.0	5.90	6.00	30.0~	C ~	3.00~	0.067	0.100	2~	71E01A05D27A8 ~	ZYL ~	01 ~	24.00~	6127338	1	TT5505
HSR 2060 100 200	SOLID TYPE ~	6.00	1.00	60.00	9.00	20.0	5.90	6.00	30.0~	C ~	3.00~	0.067	0.100	2~	71E01A05D27A8 ~	ZYL ~	01 ~	24.00~	6127339	1	TT5505
HSR 2060 150 150	SOLID TYPE ~	6.00	1.50	60.00	9.00	15.0	5.90	6.00	30.0~	C ~	3.00~	0.067	0.100	2~	71E01A05D27A8 ~	ZYL ~	01 ~	24.00~	6127340	1	TT5505
HSR 2060 200 150	SOLID TYPE ~	6.00	2.00	60.00	9.00	15.0	5.90	6.00	30.0~	C ~	3.00~	0.067	0.100	2~	71E01A05D27A8 ~	ZYL ~	01 ~	24.00~	6127341	1	TT5505
HSR 2080 020 200	SOLID TYPE ~	8.00	0.20	65.00	12.00	20.0	7.90	8.00	30.0~	C ~	3.00~	0.090	0.120	2~	71E01A05D27A8 ~	ZYL ~	01 ~	29.00~	6127342	1	TT5505
HSR 2080 030 200	SOLID TYPE ~	8.00	0.30	65.00	12.00	20.0	7.90	8.00	30.0~	C ~	3.00~	0.090	0.120	2~	71E01A05D27A8 ~	ZYL ~	01 ~	29.00~	6127343	1	TT5505
HSR 2080 050 200	SOLID TYPE ~	8.00	0.50	65.00	12.00	20.0	7.90	8.00	30.0~	C ~	3.00~	0.090	0.120	2~	71E01A05D27A8 ~	ZYL ~	01 ~	29.00~	6127344	1	TT5505
HSR 2080 100 200	SOLID TYPE ~	8.00	1.00	65.00	12.00	20.0	7.90	8.00	30.0~	C ~	3.00~	0.090	0.120	2~	71E01A05D27A8 ~	ZYL ~	01 ~	29.00~	6127345	1	TT5505
HSR 2080 150 200	SOLID TYPE ~	8.00	1.50	65.00	12.00	20.0	7.90	8.00	30.0~	C ~	3.00~	0.090	0.120	2~	71E01A05D27A8 ~	ZYL ~	01 ~	29.00~	6127346	1	TT5505
HSR 2100 020 250	SOLID TYPE ~	10.00	0.20	75.00	15.00	25.0	9.90	10.00	30.0~	C ~	3.00~	0.117	0.130	2~	71E01A05D27A8 ~	ZYL ~	01 ~	35.00~	6127347	1	TT5505
HSR 2100 030 250	SOLID TYPE ~	10.00	0.30	75.00	15.00	25.0	9.90	10.00	30.0~	C ~	3.00~	0.117	0.130	2~	71E01A05D27A8 ~	ZYL ~	01 ~	35.00~	6127348	1	TT5505
HSR 2100 050 250	SOLID TYPE ~	10.00	0.50	75.00	15.00	25.0	9.90	10.00	30.0~	C ~	3.00~	0.117	0.130	2~	71E01A05D27A8 ~	ZYL ~	01 ~	35.00~	6127349	1	TT5505
HSR 2100 100 250	SOLID TYPE ~	10.00	1.00	75.00	15.00	25.0	9.90	10.00	30.0~	C ~	3.00~	0.117	0.130	2~	71E01A05D27A8 ~	ZYL ~	01 ~	35.00~	6127350	1	TT5505
HSR 2100 150 250	SOLID TYPE ~	10.00	1.50	75.00	15.00	25.0	9.90	10.00	30.0~	C ~	3.00~	0.117	0.130	2~	71E01A05D27A8 ~	ZYL ~	01 ~	35.00~	6127351	1	TT5505
HSR 2100 200 250	SOLID TYPE ~	10.00	2.00	75.00	15.00	25.0	9.90	10.00	30.0~	C ~	3.00~	0.117	0.130	2~	71E01A05D27A8 ~	ZYL ~	01 ~	35.00~	6127352	1	TT5505
HSR 2120 030 280	SOLID TYPE ~	12.00	0.30	85.00	18.00	28.0	11.90	12.00	30.0~	C ~	3.00~	0.126	0.168	2~	71E01A05D27A8 ~	ZYL ~	01 ~	40.00~	6127353	1	TT5505
HSR 2120 050 280	SOLID TYPE ~	12.00	0.50	85.00	18.00	28.0	11.90	12.00	30.0~	C ~	3.00~	0.126	0.168	2~	71E01A05D27A8 ~	ZYL ~	01 ~	40.00~	6127354	1	TT5505
HSR 2120 100 280	SOLID TYPE ~	12.00	1.00	85.00	18.00	28.0	11.90	12.00	30.0~	C ~	3.00~	0.126	0.168	2~	71E01A05D27A8 ~	ZYL ~	01 ~	40.00~	6127355	1	TT5505
HSR 2120 150 280	SOLID TYPE ~	12.00	1.50	85.00	18.00	28.0	11.90	12.00	30.0~	C ~	3.00~	0.126	0.168	2~	71E01A05D27A8 ~	ZYL ~	01 ~	40.00~	6127356	1	TT5505
HSR 2120 200 280	SOLID TYPE ~	12.00	2.00	85.00	18.00	28.0	11.90	12.00	30.0~	C ~	3.00~	0.126	0.168	2~	71E01A05D27A8 ~	ZYL ~	01 ~	40.00~	6127357	1	TT5505
