Home Page > Milling & Solid End mills > Helical Interpolation > EFE 3...M

Milling & Solid End mills
Main Application

Helical Interpolation
Sub Application

Related Holder
Machine Side

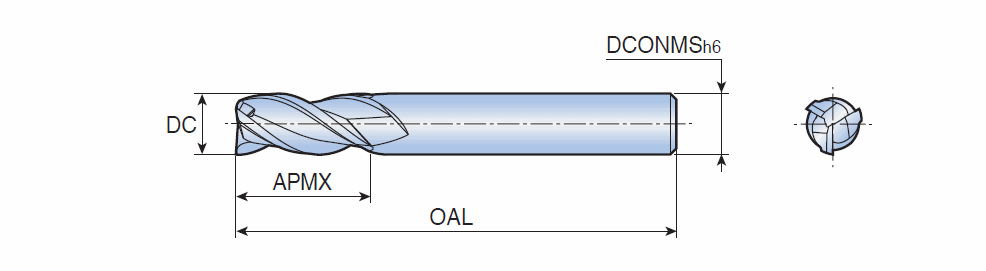

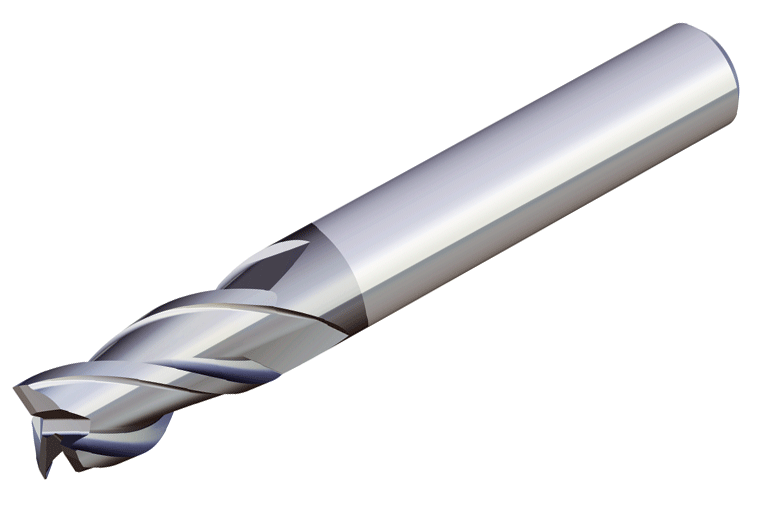

EFE 3...M : Economical 3 flute solid carbide end mills with flat & medium type for general purpose of pre-hardened steels, tool steels, alloy steels and carbon steels (Hardness < 45 HRC)

Designation	Tool sty	DC	OAL	APMX	DCONMS	FHA	Shank	RMPX	fz (min)	fz (max)	NOF	ClssID	LTA	GICAT	GIREM	giic	GICODE	Grade
EFE 3100M	SOLID TYPE ~	10.00	72.00	22.00	10.00	38.0~	C ~	5.00~	0.030	0.100	3~	71E01A05D27A8 ~	31.30~	6128971		1		TT5525
