HSF 2...M (0.3-5.0) : High precision solid carbide end mills of flat type with medium length & 2 flute for high speed machining of hardened steel & pre-hardened steel

Related solid for : ER32 SRK 4X60

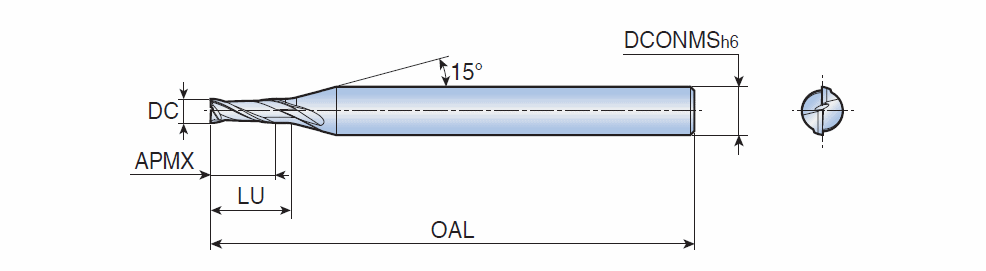

Designation	Tool sty	DC	OAL	APMX	LU	DCONMS	NOF	FHA	Shank	RMPX	fz (min)	fz (max)	ClssID	CCTMS	CCFMS	LTA	GICAT	giic	Grade
HSF 2003M 003	SOLID TYPE ~	0.30	45.00	0.30	0.60	4.00	2	30.0	C ~	3.00~	0.006	0.010	71E01A05D27A8 ~	ZYL ~	01 ~	25.00~	6171520	1	TT5505
HSF 2003M 006	SOLID TYPE ~	0.30	45.00	0.60	0.90	4.00	2	30.0	C ~	3.00~	0.006	0.010	71E01A05D27A8 ~	ZYL ~	01 ~	25.00~	6171521	1	TT5505
HSF 2004M 004	SOLID TYPE ~	0.40	45.00	0.40	0.70	4.00	2	30.0	C ~	3.00~	0.006	0.010	71E01A05D27A8 ~	ZYL ~	01 ~	25.00~	6171522	1	TT5505
HSF 2004M 008	SOLID TYPE ~	0.40	45.00	0.80	1.10	4.00	2	30.0	C ~	3.00~	0.006	0.010	71E01A05D27A8 ~	ZYL ~	01 ~	25.00~	6171523	1	TT5505
HSF 2005M 005	SOLID TYPE ~	0.50	45.00	0.50	0.80	4.00	2	30.0	C ~	3.00~	0.006	0.010	71E01A05D27A8 ~	ZYL ~	01 ~	25.00~	6171524	1	TT5505
HSF 2005M 010	SOLID TYPE ~	0.50	45.00	1.00	1.30	4.00	2	30.0	C ~	3.00~	0.006	0.010	71E01A05D27A8 ~	ZYL ~	01 ~	25.00~	6171525	1	TT5505
HSF 2006M 006	SOLID TYPE ~	0.60	45.00	0.60	0.90	4.00	2	30.0	C ~	3.00~	0.008	0.013	71E01A05D27A8 ~	ZYL ~	01 ~	25.00~	6171526	1	TT5505
HSF 2006M 012	SOLID TYPE ~	0.60	45.00	1.20	1.50	4.00	2	30.0	C ~	3.00~	0.008	0.013	71E01A05D27A8 ~	ZYL ~	01 ~	25.00~	6171527	1	TT5505
HSF 2008M 008	SOLID TYPE ~	0.80	45.00	0.80	1.20	4.00	2	30.0	C ~	3.00~	0.007	0.015	71E01A05D27A8 ~	ZYL ~	01 ~	25.00~	6171528	1	TT5505
HSF 2008M 016	SOLID TYPE ~	0.80	45.00	1.60	2.00	4.00	2	30.0	C ~	3.00~	0.007	0.015	71E01A05D27A8 ~	ZYL ~	01 ~	25.00~	6171529	1	TT5505
