TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills - Slotting

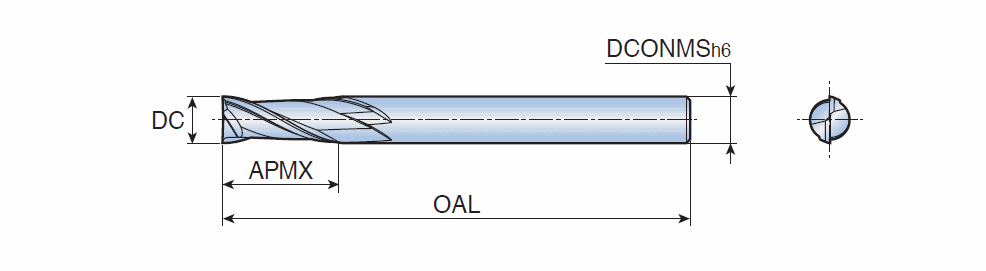

HSF 2...M (6.0-12.0) : High precision solid carbide end mills of flat type with medium length & 2 flute for high speed machining of hardened steel & pre-hardened steel

Designation	Tool sty	DC	OAL	APMX	DCONMS	NOF	FHA	Shank	fz (min)	fz (max)	RMPX	ClssID	CCTMS	CCFMS	LTA	GICAT	giic	Grade
HSF 2060M 150	SOLID TYPE ~	6.00	60.00	15.00	6.00	2	30.0	C ~	0.067	0.100	3.00~	71E01A05D27A8 ~	ZYL ~	01 ~	24.00~	6171538	1	TT5505
HSF 2080M 200	SOLID TYPE ~	8.00	65.00	20.00	8.00	2	30.0	C ~	0.090	0.120	3.00~	71E01A05D27A8 ~	ZYL ~	01 ~	30.00~	6171539	1	TT5505
HSF 2100M 250	SOLID TYPE ~	10.00	70.00	25.00	10.00	2	30.0	C ~	0.117	0.130	3.00~	71E01A05D27A8 ~	ZYL ~	01 ~	37.00~	6171540	1	TT5505
HSF 2120M 300	SOLID TYPE ~	12.00	80.00	30.00	12.00	2	30.0	C ~	0.126	0.168	3.00~	71E01A05D27A8 ~	ZYL ~	01 ~	45.00~	6171541	1	TT5505
