TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills - Helical Interpolation

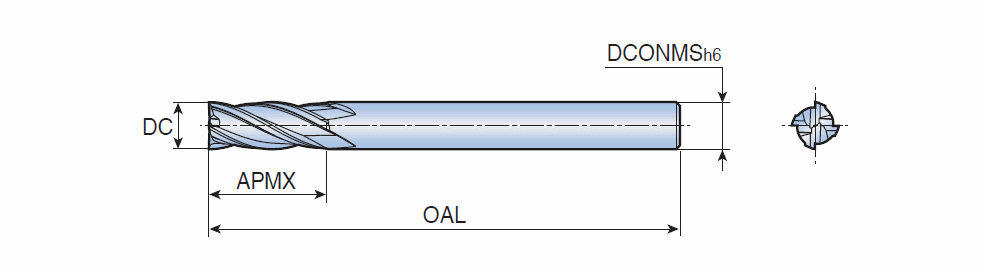

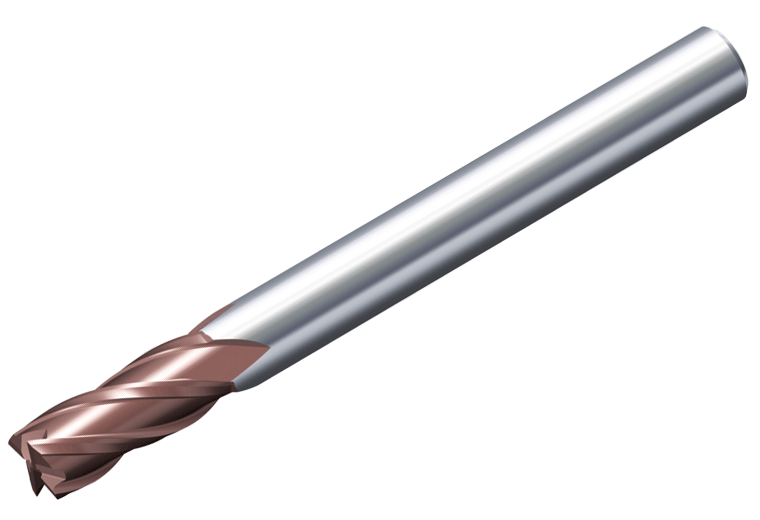

HSF 4...M (6.0-12.0) : High precision solid carbide end mills of flat type with medium length & 4 flute for high speed machining of hardened steel

Designation	Tool sty	DC	OAL	APMX	DCONMS	NOF	FHA	Shank	RMPX	fz (min)	fz (max)	ClssID	CCTMS	CCFMS	LTA	GICAT	giic	Grade
HSF 4060M 150	SOLID TYPE ~	6.00	60.00	15.00	6.00	4	30.0	C ~	3.00~	0.067	0.100	71E01A05D27A8 ~	ZYL ~	01 ~	24.00~	6171549	1	TT5505
HSF 4080M 200	SOLID TYPE ~	8.00	65.00	20.00	8.00	4	30.0	C ~	3.00~	0.090	0.120	71E01A05D27A8 ~	ZYL ~	01 ~	29.00~	6171550	1	TT5505
HSF 4100M 250	SOLID TYPE ~	10.00	70.00	25.00	10.00	4	30.0	C ~	3.00~	0.117	0.130	71E01A05D27A8 ~	ZYL ~	01 ~	32.00~	6171551	1	TT5505
HSF 4120M 300	SOLID TYPE ~	12.00	80.00	30.00	12.00	4	30.0	C ~	3.00~	0.126	0.168	71E01A05D27A8 ~	ZYL ~	01 ~	39.00~	6171552	1	TT5505
