HSR 4...M (6.0-12.0) : High precision solid carbide end mills of corner R type with medium length & 4 flute for high speed machining of hardened steel & pre-hardened steel

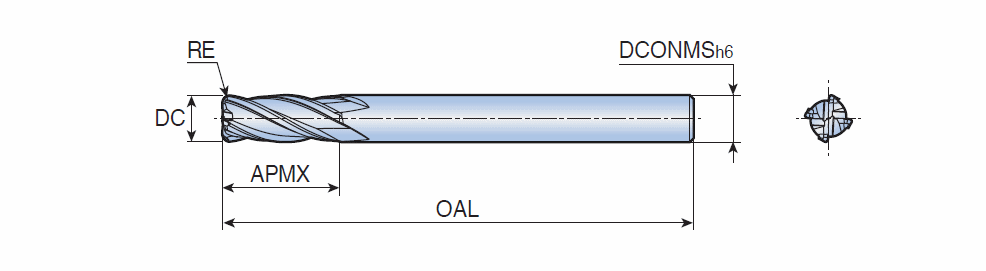

Designation	Tool sty	DC	RE	OAL	APMX	DCONMS	NOF	FHA	Shank	RMPX	fz (min)	fz (max)	ClssID	CCTMS	CCFMS	LTA	GICAT	giic	Grade
HSR 4060M 020	SOLID TYPE ~	6.00	0.20	90.00	15.00	6.00	4	30.0	C ~	3.00~	0.067	0.100	71E01A05D27A8 ~	ZYL ~	01 ~	54.00~	6171751	1	TT5505
HSR 4060M 030	SOLID TYPE ~	6.00	0.30	90.00	15.00	6.00	4	30.0	C ~	3.00~	0.067	0.100	71E01A05D27A8 ~	ZYL ~	01 ~	54.00~	6171752	1	TT5505
HSR 4060M 050	SOLID TYPE ~	6.00	0.50	90.00	15.00	6.00	4	30.0	C ~	3.00~	0.067	0.100	71E01A05D27A8 ~	ZYL ~	01 ~	54.00~	6171753	1	TT5505
HSR 4060M 100	SOLID TYPE ~	6.00	1.00	90.00	15.00	6.00	4	30.0	C ~	3.00~	0.067	0.100	71E01A05D27A8 ~	ZYL ~	01 ~	54.00~	6171754	1	TT5505
HSR 4060M 150	SOLID TYPE ~	6.00	1.50	90.00	15.00	6.00	4	30.0	C ~	3.00~	0.067	0.100	71E01A05D27A8 ~	ZYL ~	01 ~	54.00~	6188589	1	TT5505
HSR 4060M 200	SOLID TYPE ~	6.00	2.00	90.00	15.00	6.00	4	30.0	C ~	3.00~	0.067	0.100	71E01A05D27A8 ~	ZYL ~	01 ~	54.00~	6180584	1	TT5505
HSR 4080M 020	SOLID TYPE ~	8.00	0.20	100.00	20.00	8.00	4	30.0	C ~	3.00~	0.090	0.120	71E01A05D27A8 ~	ZYL ~	01 ~	64.00~	6171755	1	TT5505
HSR 4080M 030	SOLID TYPE ~	8.00	0.30	100.00	20.00	8.00	4	30.0	C ~	3.00~	0.090	0.120	71E01A05D27A8 ~	ZYL ~	01 ~	64.00~	6171756	1	TT5505
HSR 4080M 050	SOLID TYPE ~	8.00	0.50	100.00	20.00	8.00	4	30.0	C ~	3.00~	0.090	0.120	71E01A05D27A8 ~	ZYL ~	01 ~	64.00~	6171757	1	TT5505
HSR 4080M 100	SOLID TYPE ~	8.00	1.00	100.00	20.00	8.00	4	30.0	C ~	3.00~	0.090	0.120	71E01A05D27A8 ~	ZYL ~	01 ~	64.00~	6171758	1	TT5505
HSR 4080M 150	SOLID TYPE ~	8.00	1.50	100.00	20.00	8.00	4	30.0	C ~	3.00~	0.090	0.120	71E01A05D27A8 ~	ZYL ~	01 ~	64.00~	6188590	1	TT5505
HSR 4080M 200	SOLID TYPE ~	8.00	2.00	100.00	20.00	8.00	4	30.0	C ~	3.00~	0.090	0.120	71E01A05D27A8 ~	ZYL ~	01 ~	64.00~	6180585	1	TT5505
HSR 4100M 020	SOLID TYPE ~	10.00	0.20	100.00	25.00	10.00	4	30.0	C ~	3.00~	0.117	0.130	71E01A05D27A8 ~	ZYL ~	01 ~	60.00~	6171759	1	TT5505
HSR 4100M 030	SOLID TYPE ~	10.00	0.30	100.00	25.00	10.00	4	30.0	C ~	3.00~	0.117	0.130	71E01A05D27A8 ~	ZYL ~	01 ~	60.00~	6171760	1	TT5505
HSR 4100M 050	SOLID TYPE ~	10.00	0.50	100.00	25.00	10.00	4	30.0	C ~	3.00~	0.117	0.130	71E01A05D27A8 ~	ZYL ~	01 ~	60.00~	6171761	1	TT5505
HSR 4100M 100	SOLID TYPE ~	10.00	1.00	100.00	25.00	10.00	4	30.0	C ~	3.00~	0.117	0.130	71E01A05D27A8 ~	ZYL ~	01 ~	60.00~	6171762	1	TT5505
HSR 4100M 150	SOLID TYPE ~	10.00	1.50	100.00	25.00	10.00	4	30.0	C ~	3.00~	0.117	0.130	71E01A05D27A8 ~	ZYL ~	01 ~	60.00~	6188591	1	TT5505
HSR 4100M 200	SOLID TYPE ~	10.00	2.00	100.00	25.00	10.00	4	30.0	C ~	3.00~	0.117	0.130	71E01A05D27A8 ~	ZYL ~	01 ~	60.00~	6180586	1	TT5505
HSR 4120M 030	SOLID TYPE ~	12.00	0.30	110.00	30.00	12.00	4	30.0	C ~	3.00~	0.126	0.168	71E01A05D27A8 ~	ZYL ~	01 ~	65.00~	6171763	1	TT5505
HSR 4120M 050	SOLID TYPE ~	12.00	0.50	110.00	30.00	12.00	4	30.0	C ~	3.00~	0.126	0.168	71E01A05D27A8 ~	ZYL ~	01 ~	65.00~	6171764	1	TT5505
HSR 4120M 100	SOLID TYPE ~	12.00	1.00	110.00	30.00	12.00	4	30.0	C ~	3.00~	0.126	0.168	71E01A05D27A8 ~	ZYL ~	01 ~	65.00~	6171765	1	TT5505
HSR 4120M 150	SOLID TYPE ~	12.00	1.50	110.00	30.00	12.00	4	30.0	C ~	3.00~	0.126	0.168	71E01A05D27A8 ~	ZYL ~	01 ~	65.00~	6188592	1	TT5505
HSR 4120M 200	SOLID TYPE ~	12.00	2.00	110.00	30.00	12.00	4	30.0	C ~	3.00~	0.126	0.168	71E01A05D27A8 ~	ZYL ~	01 ~	65.00~	6180587	1	TT5505
