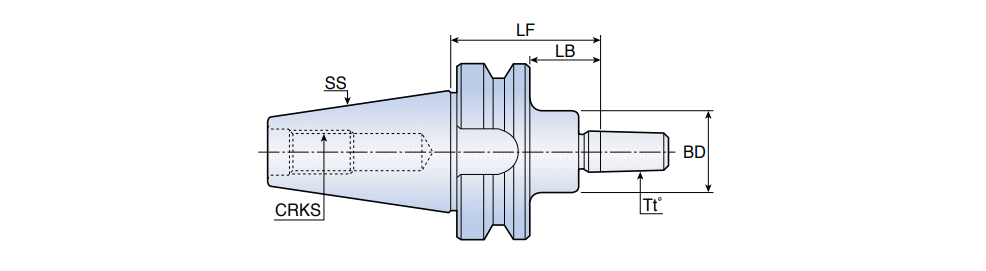

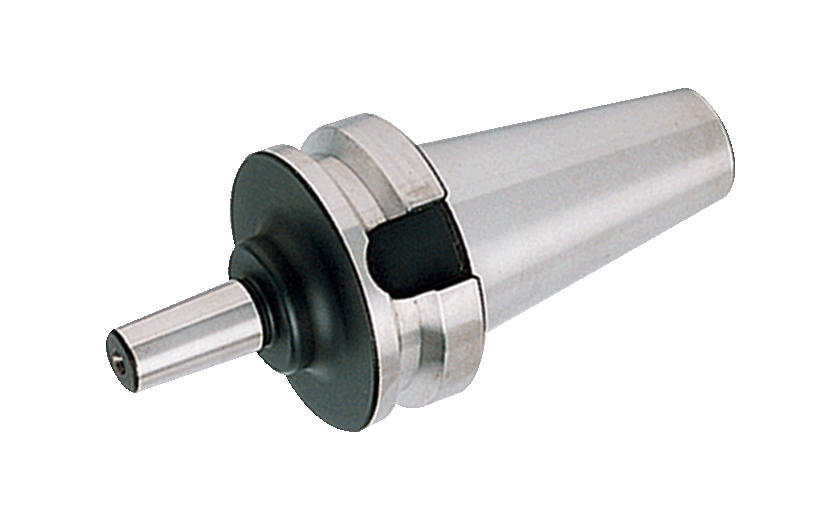

BT-DC-B : DIN 238 Drill chuck arbors with BT MAS-403 form A taper shanks


 IT_N5  IT_SURFACE HARDNESS 58~60HRC  IT_RUN-OUT A0.005  IT_TAPER SHANK GRADE
  DesignationSS Tt BD LF LB CRKS ClssID LTA LS GICATGIREMgiicGICODE
  BT30 DC B12X 30 30 B12 -30.008.0M12 0.4271EAD3871D313 ~30.00~48.4~4652813 0
  BT40 DC B12X 45 40 B12 24.0045.0018.0M16 1.0471EAD3871D313 ~45.00~65.4~4652815 0
  BT40 DC B12X 90 40 B12 24.0090.0063.0M16 1.2271EAD3871D313 ~90.00~65.4~4652816 0
  BT40 DC B16X 45 40 B16 30.0045.0018.0M16 1.0971EAD3871D313 ~45.00~65.4~4652817 0
  BT40 DC B16X 90 40 B16 30.0090.0063.0M16 1.3471EAD3871D313 ~90.00~65.4~4652818 0
  BT40 DC B18X 90 40 B18 30.0090.0063.0M16 1.3871EAD3871D313 ~90.00~65.4~4652820 0
  BT50 DC B12X 45 50 B12 -45.006.0M24 3.6771EAD3871D313 ~45.00~101.8~4652821 0
  BT50 DC B16X 45 50 B16 -45.007.0M24 3.7271EAD3871D313 ~45.00~101.8~4652823 0
  BT50 DC B16X105 50 B16 50.00105.0067.0M24 4.6471EAD3871D313 ~105.00~101.8~4652824 0
  BT50 DC B18X 45 50 B18 -45.007.0M24 3.7371EAD3871D313 ~45.00~101.8~4652825 0
Without drill chuck
