TaeguTec Cutting Tools - Metal Working Tools

AXCT 0602-L : High positive ground inserts with two helical cutting edges in smooth cutting & low cutting force for miniature tools of Swiss automatic lathe

Related insert for : MTE90AX 320-10-06-L50

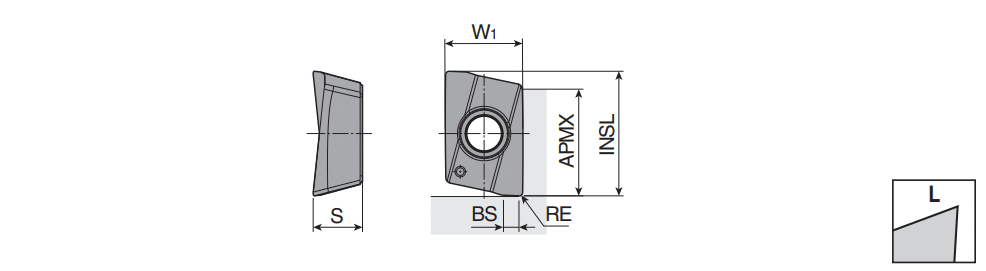

Designation	INSL	W1	S	APMX	BS	RE	S1	S2	CEDC	Insert	fz (max)	fz (min)	ap (min)	ap (max)	SF	ClssID		CB	GRDMFG	GICAT	giic	Grade
AXCT 060200R-L	6.50	4.20	2.60	5.50	1.00	0.00	6.00~	~	2~	CM-AX06 ~	0.080	0.030	0.10	5.00	M5 ~	71DD68D91938A ~	G30 ~	L ~	TT5525 ~	6306127	1	TT5525
AXCT 060202R-L	6.50	4.20	2.60	5.50	0.80	0.20	6.00~	~	2~	CM-AX06 ~	0.100	0.030	0.20	5.00	M5 ~	71DD68D91938A ~	G30 ~	L ~	TT5525 ~	6315604	1	TT5525
AXCT 060204R-L	6.50	4.20	2.60	5.50	0.60	0.40	6.00~	~	2~	CM-AX06 ~	0.100	0.030	0.30	5.00	M5 ~	71DD68D91938A ~	G30 ~	L ~	TT5525 ~	6315605	1	TT5525
