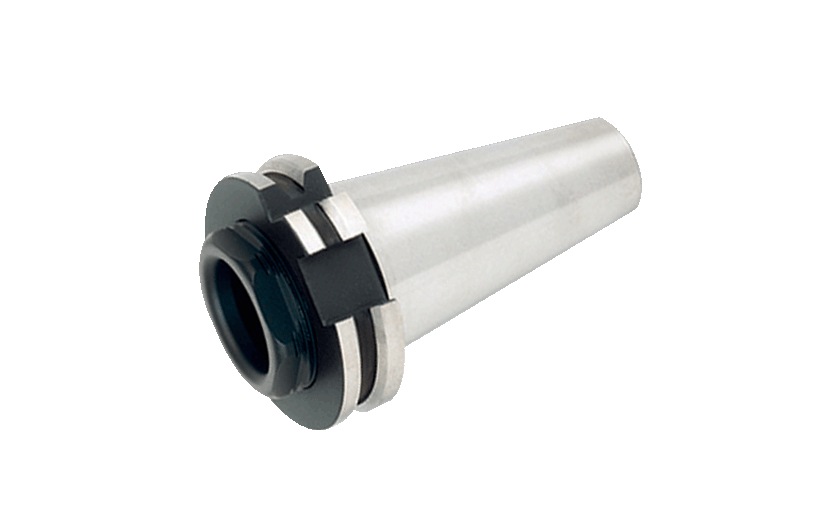

DIN69871-ER-SHORT : Short DIN6499 ER collet chucks with DIN 69871 form AD taper shanks


 IT_BALANCE_20000 RPM  IT_BALANCE GRADE  IT_RUN-OUT A0.003  IT_TAPER SHANK GRADE  IT_SURFACE HARDNESS 58~60HRC  IT_N5
Related holder for : EROH 32-11.0

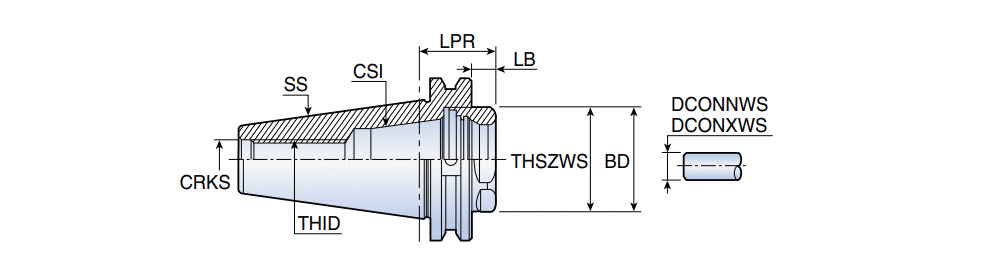

  DesignationSS CSI DCONNWS DCONXWS BD LPR LB CRKS THSZWS THID S1 ClssID CCTWS CCFWS LS GICATGIREMgiicGICODE
  DIN69871 40 ER 32 SHORT 40 ER32 2.0020.0040.0028.606.0M16 M40X1.5 M16 0.5832.00~71EAD3871D313 ~SZD ~02 ~68.4~4651079 0
  DIN69871 50 ER 32 SHORT 50 ER32 2.0020.0040.0028.609.5M24 M40X1.5 M22X1.5 2.3832.00~71EAD3871D313 ~SZD ~02 ~101.8~4651081 0
