DIN69871-EM-E(WHISTLE) : Whistle notch DIN 6359 / DIN 1835 form E end mill holders with DIN 69871 form AD taper shanks

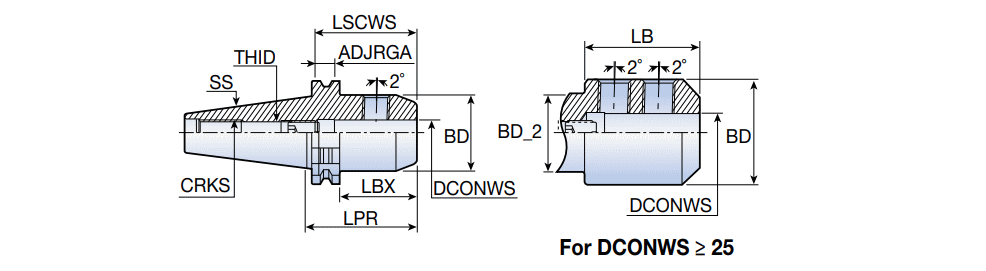

Designation	SS	DCONWS	BD	BD_2	LPR	LBX	LB	Lmin	ADJRGA	LSCWS	CRKS	THID		Shank	ClssID	LTA	CCTWS	CCFWS	LS	GICAT
DIN69871 40 EM 8X50E	40	8.00	28.00	-	50.00	30.9	-	35.0~	10.00	45.0	M16	M6	0.94	W ~	71EAD3871D313 ~	50.00~	ZYL ~	13 ~	68.4~	4652134
DIN69871 40 EM 10X50E	40	10.00	35.00	-	50.00	30.9	-	39.0~	10.00	49.0	M16	M8	1.00	W ~	71EAD3871D313 ~	50.00~	ZYL ~	13 ~	68.4~	4652135
DIN69871 40 EM 12X50E	40	12.00	42.00	-	50.00	30.9	-	44.0~	10.00	54.0	M16	M10	1.07	W ~	71EAD3871D313 ~	50.00~	ZYL ~	13 ~	68.4~	4652136
DIN69871 40 EM 16X63E	40	16.00	48.00	-	63.00	43.9	-	47.0~	10.00	57.0	M16	M12	1.28	W ~	71EAD3871D313 ~	63.00~	ZYL ~	13 ~	68.4~	4652138
DIN69871 40 EM 18X63E	40	18.00	50.00	-	63.00	43.9	-	47.0~	10.00	57.0	M16	M12	1.31	W ~	71EAD3871D313 ~	63.00~	ZYL ~	13 ~	68.4~	4652139
DIN69871 40 EM 20X63E	40	20.00	52.00	-	63.00	43.9	-	49.0~	10.00	59.0	M16	M16	1.25	W ~	71EAD3871D313 ~	63.00~	ZYL ~	13 ~	68.4~	4652140
DIN69871 40 EM 25X100E	40	25.00	64.00	49.00	100.00	80.9	65.00	54.0~	10.00	64.0	M16	M20X1.5	2.18	W ~	71EAD3871D313 ~	100.00~	ZYL ~	13 ~	68.4~	4652141
DIN69871 50 EM 10X63E	50	10.00	35.00	-	63.00	43.9	-	39.0~	10.00	49.0	M24	M8	2.86	W ~	71EAD3871D313 ~	63.00~	ZYL ~	13 ~	101.8~	4652144
DIN69871 50 EM 12X63E	50	12.00	42.00	-	63.00	43.9	-	44.0~	10.00	54.0	M24	M10	2.98	W ~	71EAD3871D313 ~	63.00~	ZYL ~	13 ~	101.8~	4652145
DIN69871 50 EM 14X63E	50	14.00	44.00	-	63.00	43.9	-	44.0~	10.00	54.0	M24	M10	3.02	W ~	71EAD3871D313 ~	63.00~	ZYL ~	13 ~	101.8~	4652146
DIN69871 50 EM 16X63E	50	16.00	48.00	-	63.00	43.9	-	47.0~	10.00	57.0	M24	M12	3.07	W ~	71EAD3871D313 ~	63.00~	ZYL ~	13 ~	101.8~	4652147
DIN69871 50 EM 20X63E	50	20.00	52.00	-	63.00	43.9	-	49.0~	10.00	59.0	M24	M16	3.11	W ~	71EAD3871D313 ~	63.00~	ZYL ~	13 ~	101.8~	4652149
DIN69871 50 EM 25X80E	50	25.00	65.00	-	80.00	60.9	-	54.0~	10.00	64.0	M24	M20X1.5	3.67	W ~	71EAD3871D313 ~	80.00~	ZYL ~	13 ~	101.8~	4604730
DIN69871 50 EM 32X100E	50	32.00	72.00	-	100.00	80.9	-	58.0~	10.00	68.0	M24	M20X1.5	4.50	W ~	71EAD3871D313 ~	100.80~	ZYL ~	13 ~	101.8~	4652150
DIN69871 50 EM 40X100E	50	40.00	90.00	79.90	100.00	80.9	43.00	68.0~	10.00	78.0	M24	M20X1.5	5.05	W ~	71EAD3871D313 ~	100.00~	ZYL ~	13 ~	101.8~	4652151

The adjustment screw has an internal coolant hole
Add B for coolant through the flange
