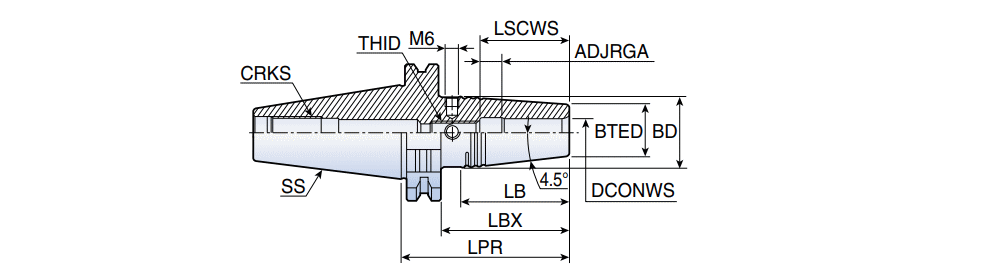

DIN69871-SRKIN : Thermal shrinking chucks with DIN 69871 form AD taper shanks for solid carbide and steel shank tools

Designation	SS	DCONWS	BTED	BD	LPR	LBX	LB	Lmin	ADJRGA	LSCWS	CRKS	THID		Shank	ClssID	LTA	CCTWS	CCFWS	LS	GICAT	GIREM
DIN69871 40 SRKIN 6X80	40	6.00	21.00	27.00	80.00	60.9	38.00	25.0~	11.00	36.0	M16	M5	2.76	C ~	71EAD3871D313 ~	80.00~	ZYL ~	01 ~	68.4~	4651645
DIN69871 40 SRKIN 8X80	40	8.00	21.00	27.00	80.00	60.9	38.00	25.0~	11.00	36.0	M16	M6	2.90	C ~	71EAD3871D313 ~	80.00~	ZYL ~	01 ~	68.4~	4651646
DIN69871 40 SRKIN 10X80	40	10.00	24.00	32.00	80.00	60.9	50.50	31.0~	11.00	42.0	M16	M8	1.21	C ~	71EAD3871D313 ~	80.00~	ZYL ~	01 ~	68.4~	4651647
DIN69871 40 SRKIN 12X80	40	12.00	24.00	32.00	80.00	60.9	50.50	31.0~	16.00	47.0	M16	M10	1.16	C ~	71EAD3871D313 ~	80.00~	ZYL ~	01 ~	68.4~	4651648
DIN69871 40 SRKIN 14X80	40	14.00	27.00	34.00	80.00	60.9	44.20	36.0~	11.00	47.0	M16	M10	1.16	C ~	~	80.00~	ZYL ~	01 ~	68.4~	4651649
DIN69871 40 SRKIN 16X80	40	16.00	27.00	34.00	80.00	60.9	44.20	39.0~	11.00	50.0	M16	M12	1.71	C ~	71EAD3871D313 ~	80.00~	ZYL ~	01 ~	68.4~	4651650
DIN69871 40 SRKIN 18X80	40	18.00	33.00	42.00	80.00	60.9	57.00	39.0~	11.00	50.0	M16	M12	2.75	C ~	71EAD3871D313 ~	80.00~	ZYL ~	01 ~	68.4~	4651651
DIN69871 40 SRKIN 20X80	40	20.00	33.00	42.00	80.00	60.9	57.00	41.0~	11.00	52.0	M16	M16	2.71	C ~	71EAD3871D313 ~	80.00~	ZYL ~	01 ~	68.4~	4651652
DIN69871 40 SRKIN 25X100	40	25.00	44.00	53.00	80.00	80.9	57.00	47.0~	11.00	58.0	M16	M16	0.99	C ~	71EAD3871D313 ~	100.00~	ZYL ~	01 ~	68.4~	4651653
DIN69871 50 SRKIN 6X80	50	6.00	21.00	27.00	80.00	60.9	38.00	25.0~	11.00	36.0	M16	M5	2.81	C ~	71EAD3871D313 ~	80.00~	ZYL ~	01 ~	101.8~	4651654	Balance to G2.5 at 20,000RPM
DIN69871 50 SRKIN 8X80	50	8.00	21.00	27.00	80.00	60.9	38.00	25.0~	11.00	36.0	M16	M6	2.79	C ~	71EAD3871D313 ~	80.00~	ZYL ~	01 ~	101.8~	4651655	Balance to G2.5 at 20,000RPM
DIN69871 50 SRKIN 10X80	50	10.00	24.00	32.00	80.00	60.9	51.00	31.0~	11.00	42.0	M16	M8	1.00	C ~	71EAD3871D313 ~	80.00~	ZYL ~	01 ~	101.8~	4651656	Balance to G2.5 at 20,000RPM
DIN69871 50 SRKIN 12X80	50	12.00	24.00	32.00	80.00	60.9	51.00	31.0~	16.00	47.0	M16	M10	1.00	C ~	71EAD3871D313 ~	80.00~	ZYL ~	01 ~	101.8~	4651657	Balance to G2.5 at 20,000RPM
DIN69871 50 SRKIN 14X80	50	14.00	27.00	34.00	80.00	60.9	45.00	36.0~	11.00	47.0	M16	M10	1.05	C ~	71EAD3871D313 ~	80.00~	ZYL ~	01 ~	101.8~	4651658	Balance to G2.5 at 20,000RPM
DIN69871 50 SRKIN 16X80	50	16.00	27.00	34.00	80.00	60.9	45.00	39.0~	11.00	50.0	M16	M12	1.05	C ~	71EAD3871D313 ~	80.00~	ZYL ~	01 ~	101.8~	4651659	Balance to G2.5 at 20,000RPM
DIN69871 50 SRKIN 18X80	50	18.00	33.00	42.00	80.00	60.9	57.00	39.0~	11.00	50.0	M16	M12	1.04	C ~	71EAD3871D313 ~	80.00~	ZYL ~	01 ~	101.8~	4651660	Balance to G2.5 at 20,000RPM
DIN69871 50 SRKIN 20X80	50	20.00	33.00	42.00	80.00	60.9	57.00	41.0~	11.00	52.0	M16	M16	1.04	C ~	71EAD3871D313 ~	80.00~	ZYL ~	01 ~	101.8~	4651661	Balance to G2.5 at 20,000RPM
DIN69871 50 SRKIN 25X100	50	25.00	44.00	53.00	80.00	80.9	57.00	47.0~	11.00	58.0	M16	M16	1.09	C ~	71EAD3871D313 ~	100.00~	ZYL ~	01 ~	101.8~	4651662	Balance to G2.5 at 20,000RPM
DIN69871 50 SRKIN 32X100	50	32.00	44.00	53.00	80.00	80.9	57.00	47.0~	11.00	58.0	M16	M16	1.06	C ~	71EAD3871D313 ~	100.00~	ZYL ~	01 ~	101.8~	4651663	Balance to G2.5 at 20,000RPM

Only use inductive heating device for T-SHRINK holders
Add B for coolant through flange
