TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

MXSTD..-S (slotting) : Straight steel shanks for MAXIRUSH TST & TTB slotting heads

Related holder for : C6 SRKIN 8X80

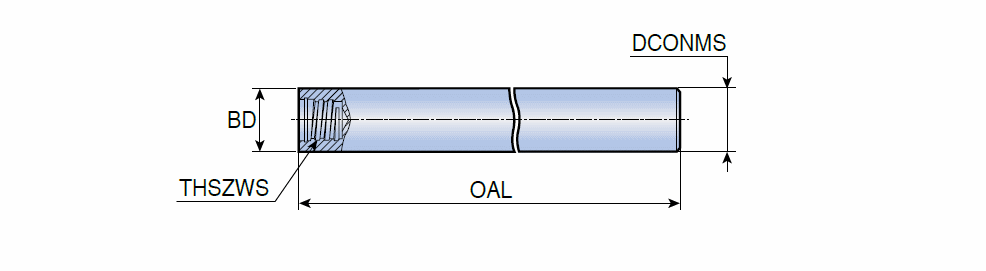

Designation	THSZWS	DCONMS	BD	OAL	Shank. M	Shank		ClssID	CCTMS	CCFMS	CCTWS	CCFWS	LTA	GICAT	GIREM	giic	GICODE
MXSTD08L050S05-S	S05	8.00	8.00	50.00	Steel	C ~	0.00~	71EAD3871D313 ~	ZYL ~	01 ~	SAI ~	01 ~	14.00~	6237049		0
MXSTD08L070S05-S	S05	8.00	8.00	70.00	Steel	C ~	0.00~	71EAD3871D313 ~	ZYL ~	01 ~	SAI ~	01 ~	34.00~	6859179		0

For MXSTD type shank, it is recommended to use the TTB & TST slotting head.
If other heads are used on the MXSTD shank, the depth of cut must be smaller than the max. ap in each head.
The MXSTD type shank does not have external clearance,
so the shank may interfere with the work piece.
