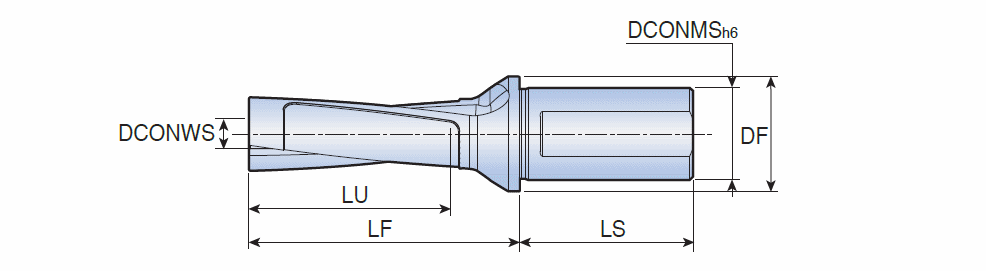

MDB...T2-3 : Modular drill holders of drilling depth in 3xD for modular drill heads of big diameter

Drilling depth: 3xdiameter

Designation	DCN	DCX	DCONWS	DCONMS	DF	LU	LF	LS	S1	Po.Size		Machines	Zeff	Min Tol	Max Tol	Shank	ClssID	DC	L/D	GICAT
MDB D26/27-081-32T2-C26-3	26.00	27.00	10.40	32.00	40.00	60.0	94.30	60.0	0.00~	~	Y ~	~	2~	0~	0~	W	71E01A0608FE4 ~	26.00~	3.00~	6319837
MDB D28/29-087-32T2-C28-3	28.00	29.00	11.20	32.00	40.00	64.0	100.50	60.0	0.00~	~	Y ~	~	2~	0~	0~	W	71E01A0608FE4 ~	28.00~	3.00~	6326589
MDB D30/31-093-32T2-C30-3	30.00	31.00	12.00	32.00	40.00	69.0	105.50	60.0	0.00~	~	Y ~	~	2~	0~	0~	W	71E01A0608FE4 ~	30.00~	3.00~	6326590
MDB D32/33-099-32T2-C32-3	32.00	33.00	12.80	32.00	40.00	73.0	111.70	60.0	0.00~	~	Y ~	~	2~	0~	0~	W	71E01A0608FE4 ~	32.00~	3.00~	6326591
MDB D34/35-105-40T2-C34-3	34.00	35.00	13.60	40.00	50.00	78.0	120.20	68.0	0.00~	~	Y ~	~	2~	0~	0~	W	71E01A0608FE4 ~	34.00~	3.00~	6326592
MDB D36/37-111-40T2-C36-3	36.00	37.00	14.40	40.00	50.00	82.0	126.50	68.0	0.00~	~	Y ~	~	2~	0~	0~	W	71E01A0608FE4 ~	36.00~	3.00~	6326593
MDB D38/39-117-40T2-C38-3	38.00	39.00	15.20	40.00	50.00	86.0	131.40	68.0	0.00~	~	Y ~	~	2~	0~	0~	W	71E01A0608FE4 ~	38.00~	3.00~	6319836
MDB D40/41-123-40T2-C40-3	40.00	41.00	16.00	40.00	50.00	91.0	137.60	68.0	0.00~	~	Y ~	~	2~	0~	0~	W	71E01A0608FE4 ~	40.00~	3.00~	6326594
MDB D42/43-129-40T2-C42-3	42.00	43.00	16.80	40.00	50.00	95.0	143.80	68.0	0.00~	~	Y ~	~	2~	0~	0~	W	71E01A0608FE4 ~	42.00~	3.00~	6326595
MDB D44/45-135-40T2-C44-3	44.00	45.00	17.60	40.00	50.00	99.0	150.00	68.0	0.00~	~	Y ~	~	2~	0~	0~	W	71E01A0608FE4 ~	44.00~	3.00~	6326596
MDB D46/47-141-50T2-C46-3	46.00	47.00	18.40	50.00	60.00	104.0	154.50	80.0	0.00~	~	Y ~	~	2~	0~	0~	W	71E01A0608FE4 ~	46.00~	3.00~	6326597
MDB D48/50-150-50T2-C48-3	48.00	50.00	19.20	50.00	60.00	111.0	160.90	80.0	0.00~	~	Y ~	~	2~	0~	0~	W	71E01A0608FE4 ~	48.00~	3.00~	6326598

DC: Cutting diameter range
DCONWS: Modular head connection size
