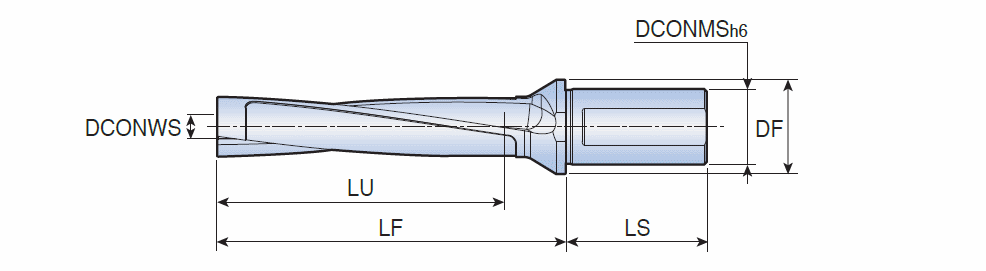

MDB...T2-5 : Modular drill holders of drilling depth in 5xD for modular drill heads of big diameter

Drilling depth: 5xdiameter

Drilling depth: 5xdiameter

DR COOLANT-TOP/TDR/TND/HFD

Designation	DCN	DCX	DCONWS	DCONMS	DF	LU	LF	LS	S1	Po.Size		Machines	Zeff	Min Tol	Max Tol	Shank	ClssID	DC	L/D	GICAT	GIREM	giic	GICODE
MDB D26/27-135-32T2-C26-5	26.00	27.00	10.40	32.00	40.00	114.0	148.30	60.0	0.00~	~	2 ~	~	2~	0~	0~	W	71E01A0608FE4 ~	26.00~	2.00~	6314498		0
MDB D28/29-145-32T2-C28-5	28.00	29.00	11.20	32.00	40.00	122.0	158.50	60.0	0.00~	~	2 ~	~	2~	0~	0~	W	71E01A0608FE4 ~	28.00~	2.00~	6314499		0
MDB D30/31-155-32T2-C30-5	30.00	31.00	12.00	32.00	40.00	131.0	167.50	60.0	0.00~	~	2 ~	~	2~	0~	0~	W	71E01A0608FE4 ~	30.00~	2.00~	6314500		0
MDB D32/33-165-32T2-C32-5	32.00	33.00	12.80	32.00	40.00	139.0	177.70	60.0	0.00~	~	2 ~	~	2~	0~	0~	W	71E01A0608FE4 ~	32.00~	2.00~	6314501		0
MDB D34/35-175-40T2-C34-5	34.00	35.00	13.60	40.00	50.00	148.0	190.20	68.0	0.00~	~	2 ~	~	2~	0~	0~	W	71E01A0608FE4 ~	34.00~	2.00~	6314502		0
MDB D36/37-185-40T2-C36-5	36.00	37.00	14.40	40.00	50.00	156.0	200.50	68.0	0.00~	~	2 ~	~	2~	0~	0~	W	71E01A0608FE4 ~	36.00~	2.00~	6314503		0
MDB D38/39-195-40T2-C38-5	38.00	39.00	15.20	40.00	50.00	164.0	209.40	68.0	0.00~	~	2 ~	~	2~	0~	0~	W	71E01A0608FE4 ~	38.00~	2.00~	6314504		0
MDB D40/41-205-40T2-C40-5	40.00	41.00	16.00	40.00	50.00	173.0	219.60	68.0	0.00~	~	2 ~	~	2~	0~	0~	W	71E01A0608FE4 ~	40.00~	2.00~	6314505		0
MDB D42/43-215-40T2-C42-5	42.00	43.00	16.80	40.00	50.00	181.0	229.80	68.0	0.00~	~	2 ~	~	2~	0~	0~	W	71E01A0608FE4 ~	42.00~	2.00~	6314506		0
MDB D44/45-225-40T2-C44-5	44.00	45.00	17.60	40.00	50.00	189.0	240.00	68.0	0.00~	~	2 ~	~	2~	0~	0~	W	71E01A0608FE4 ~	44.00~	2.00~	6314507		0
MDB D46/47-235-50T2-C46-5	46.00	47.00	18.40	50.00	60.00	198.0	248.50	80.0	0.00~	~	2 ~	~	2~	0~	0~	W	71E01A0608FE4 ~	46.00~	2.00~	6314508		0
MDB D48/50-250-50T2-C48-5	48.00	50.00	19.20	50.00	60.00	211.0	258.90	80.0	0.00~	~	2 ~	~	2~	0~	0~	W	71E01A0608FE4 ~	48.00~	2.00~	6314509		0

DC: Cutting diameter range
DCONWS: Modular head connection size
