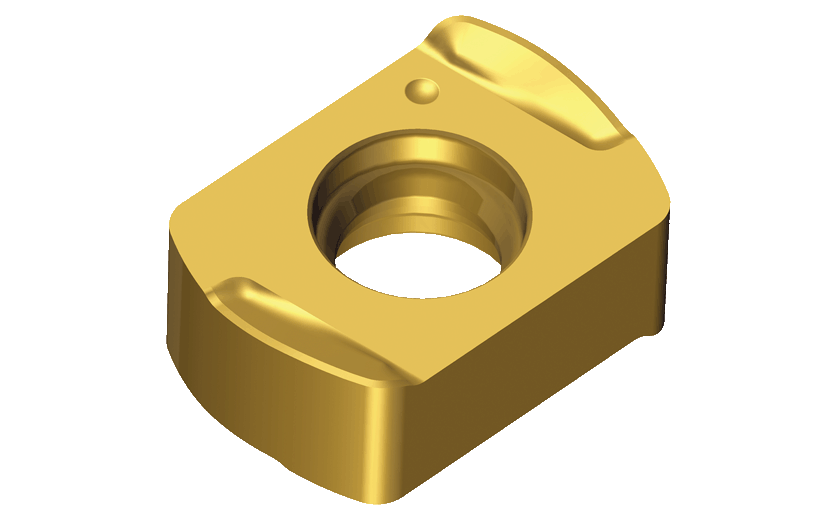

BLMP 04-M : Unique double-sided inserts of 4 cutting edges for High Feed milling of general applications in maximum depth of cut ap 0.5 mm

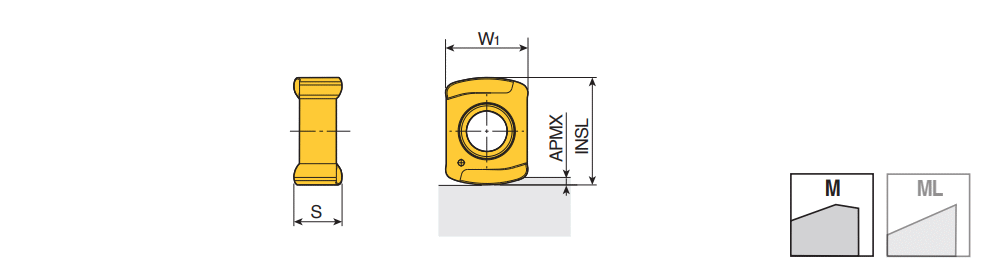

Designation	INSL	W1	S	RE	APMX	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	Insert	CEDC	SC	Pocket		ClssID	CB	GRDMFG	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
BLMP 0402R-M	6.00	4.20	2.52	0.50	0.50	4.00~	0.10	0.50	1.500	0.200	M8 ~	C4F-BL04 ~	4~	B ~	BLMP04 ~	M ~	71DDA089C8D1E ~	M ~	TT2510 ~	6185238		3		TT8080 TT9080 TT2510
