Home Page > Milling & Solid End mills > Helical Interpolation > TEPT-10

Milling & Solid End mills
Main Application

Helical Interpolation
Sub Application

More Info Related Insert Related Holder

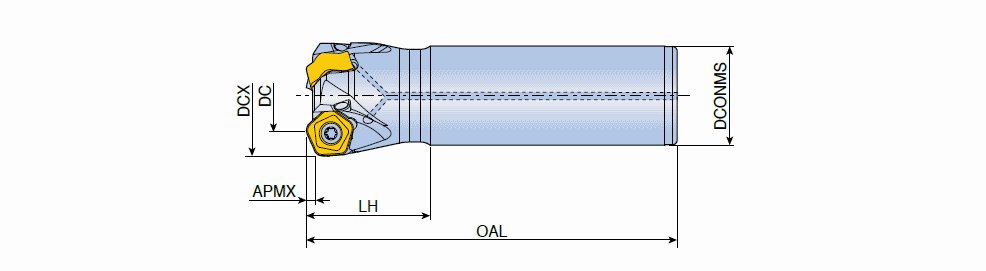

TEPT-10 : High feed end mills with PTKU 10 inserts of economical 10 cutting edges in maximum depth of cut ap 3.0 mm

Designation	Tool sty	DCX	DC	CICT	DCONMS	OAL	LH	APMX	KAPR		S1	Shank	Rd	e	PD		Insert	Pocket	ClssID	MIID	CCTMS	CCFMS	LTA	GICAT	GIREM	giic	GICODE
TEPT 340-32-10-L200	ENDMILL ~	40.00	23.50	3	32.00	200.00	40.0	3.00	25.0~	O ~	10.00~	C ~	1.50~	~	RC ~	1.17	C10M-PT10 ~	PTKU10 ~	71E01A05D27A8 ~	PTKU 1006R-M	ZYL ~	01 ~	140.00~	6307985		0
