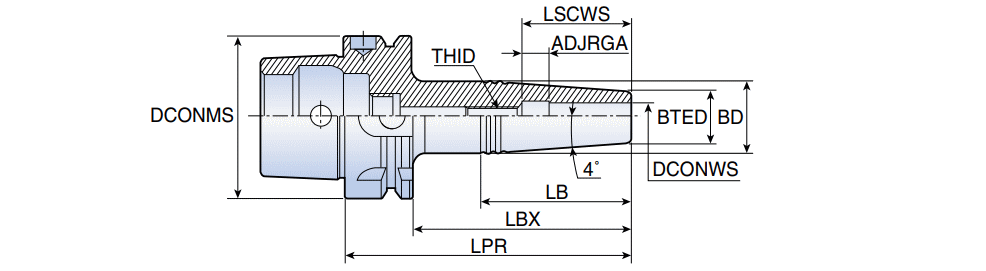

HSK A-SRK : Thermal shrinking chucks with HSK DIN 69893 form A taper shanks for solid carbide tools

Designation	DCONMS	DCONWS	BTED	BD	LPR	LBX	LB	Lmin	ADJRGA	LSCWS	THID	Key		Shank	ClssID	LTA	CCTWS	CCFWS	GICAT
HSK A 63 SRK 3X50	63	3.00	10.00	17.00	76.00	50.0	-	10.0~	6.00	16.0	M6	3.0	0.68	C ~	71EAD3871D313 ~	76.00~	ZYL ~	01 ~	4651728
HSK A 63 SRK 3X85	63	3.00	10.00	21.00	111.00	85.0	79.00	10.0~	6.00	16.0	M6	3.0	0.74	C ~	71EAD3871D313 ~	111.00~	ZYL ~	01 ~	4651729
HSK A 63 SRK 4X50	63	4.00	10.00	17.00	76.00	50.0	-	12.0~	6.00	18.0	M6	3.0	0.68	C ~	71EAD3871D313 ~	76.00~	ZYL ~	01 ~	4651730
HSK A 63 SRK 4X85	63	4.00	10.00	21.00	111.00	85.0	79.00	12.0~	6.00	18.0	M6	3.0	0.73	C ~	71EAD3871D313 ~	111.00~	ZYL ~	01 ~	4651731
HSK A 63 SRK 5X85	63	5.00	10.00	21.00	111.00	85.0	79.00	15.0~	6.00	21.0	M6	3.0	0.76	C ~	71EAD3871D313 ~	111.00~	ZYL ~	01 ~	4651733
HSK A 63 SRK 6X50	63	6.00	11.00	18.00	76.00	50.0	-	18.0~	6.00	24.0	M8	4.0	0.67	C ~	71EAD3871D313 ~	76.00~	ZYL ~	01 ~	4651734
HSK A 63 SRK 6X85	63	6.00	11.00	22.00	111.00	85.0	79.00	18.0~	6.00	24.0	M8	4.0	0.74	C ~	71EAD3871D313 ~	111.00~	ZYL ~	01 ~	4651735
HSK A 63 SRK 8X50	63	8.00	14.00	20.00	76.00	50.0	43.00	25.0~	11.00	36.0	M6	3.0	0.71	C ~	71EAD3871D313 ~	76.00~	ZYL ~	01 ~	4651736
HSK A 63 SRK 8X85	63	8.00	14.00	23.00	111.00	85.0	64.00	25.0~	11.00	36.0	M6	3.0	0.80	C ~	71EAD3871D313 ~	111.00~	ZYL ~	01 ~	4651737
HSK A 63 SRK 10X50	63	10.00	16.00	23.00	76.00	50.0	-	30.0~	11.00	41.0	M8	4.0	0.72	C ~	71EAD3871D313 ~	76.00~	ZYL ~	01 ~	4651738
HSK A 63 SRK 10X85	63	10.00	16.00	26.00	111.00	85.0	72.00	30.0~	11.00	41.0	M8	4.0	0.82	C ~	71EAD3871D313 ~	111.00~	ZYL ~	01 ~	4651739
HSK A 63 SRK 12X50	63	12.00	20.00	27.00	76.00	50.0	-	32.0~	11.00	43.0	M8	4.0	0.75	C ~	71EAD3871D313 ~	76.00~	ZYL ~	01 ~	4651740
HSK A 63 SRK 12X85	63	12.00	20.00	30.00	111.00	85.0	72.00	32.0~	11.00	43.0	M8	4.0	0.92	C ~	71EAD3871D313 ~	111.00~	ZYL ~	01 ~	4651741
