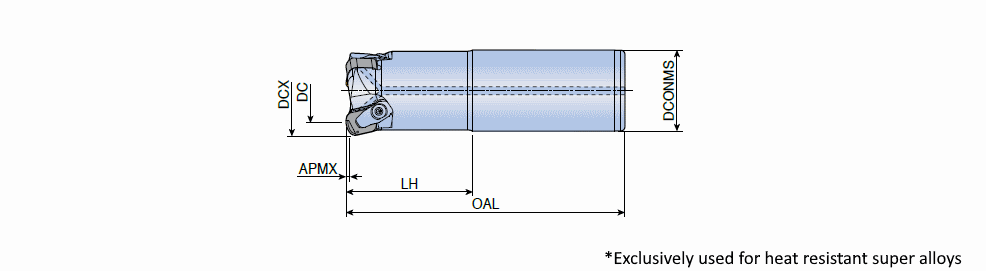

TEBN-09CH : High Feed end mills with Dimple negative Ceramic inserts four cutting edges for high speed machining of super alloys

Designation	Tool sty	DCX	CICT	DC	DCONMS	OAL	LH	APMX	Air hole	S1	KAPR	Shank	Rd	e	PD		Insert	Pocket	ClssID	MIID		CCTMS	CCFMS	LTA	GICAT
TEBN 225-25-09CH-L100	ENDMILL ~	25.00	2	14.80	25.00	100.00	40.0	1.50	X	9.00~	1.0~	C ~	1.20~	~	C ~	0.32	CSF-BN09 ~	BNGX09 ~	71E01A05D27A8 ~	BNGX 0904 CH-E04	Air hole ~	ZYL ~	01 ~	44.00~	6302568
TEBN 325-25-09CH-L100	ENDMILL ~	25.00	3	14.80	25.00	100.00	40.0	1.50	X	9.00~	1.0~	C ~	1.20~	~	RC ~	0.32	CSF-BN09 ~	BNGX09 ~	71E01A05D27A8 ~	BNGX 0904 CH-E04	Air hole ~	ZYL ~	01 ~	44.00~	6322614
TEBN 332-32-09CH-L120	ENDMILL ~	32.00	3	21.50	32.00	120.00	40.0	1.50	O	9.00~	1.0~	C ~	0.60~	~	C ~	0.63	CSF-BN09 ~	BNGX09 ~	71E01A05D27A8 ~	BNGX 0904 CH-E04	Air hole ~	ZYL ~	01 ~	60.00~	6302569
TEBN 440-32-09CH-L120	ENDMILL ~	40.00	4	29.40	32.00	120.00	40.0	1.50	O	9.00~	1.0~	C ~	0.50~	~	C ~	0.69	CSF-BN09 ~	BNGX09 ~	71E01A05D27A8 ~	BNGX 0904 CH-E04	Air hole ~	ZYL ~	01 ~	60.00~	6302570
