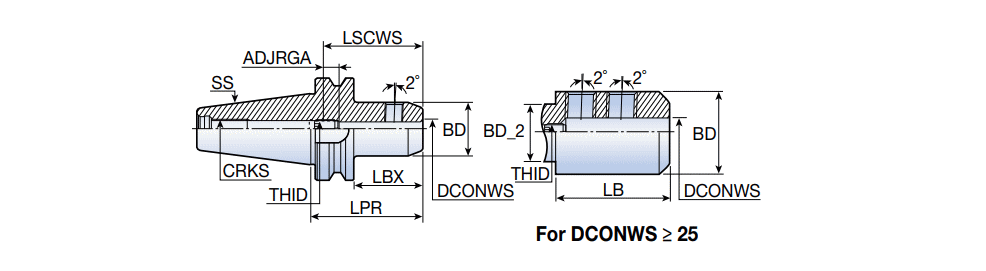

BT-EM-E(WHISTLE) : DIN 6359 / DIN 1835 form E whistle notch end mill holders with BT MAS-403 form AD taper shanks

Designation	SS	DCONWS	BD	BD_2	LPR	LBX	LB	ADJRGA	Lmin	LSCWS	CRKS	THID	Key		Shank	ClssID	LTA	CCTWS	CCFWS	LS	GICAT
BT40 EM 12X65E	40	12.00	42.00	-	65.00	38.0	-	10.00	44.0	54.0	M16	M10	5.0	1.38	W ~	71EAD3871D313 ~	65.00~	ZYL ~	13 ~	65.4~	4652181
BT40 EM 16X65E	40	16.00	48.00	-	65.00	38.0	-	10.00	47.0	57.0	M16	M12	6.0	1.45	W ~	71EAD3871D313 ~	65.00~	ZYL ~	13 ~	65.4~	4652183
BT40 EM 20X75E	40	20.00	52.00	-	75.00	48.0	-	10.00	49.0	59.0	M16	M16	8.0	1.62	W ~	71EAD3871D313 ~	75.00~	ZYL ~	13 ~	65.4~	4652185
BT40 EM 25X105E	40	25.00	65.00	61.00	105.00	78.0	68.00	10.00	54.0	64.0	M16	M20X1.5	10.0	2.62	W ~	71EAD3871D313 ~	105.00~	ZYL ~	13 ~	65.4~	4652186
BT40 EM 32X110E	40	32.00	72.00	61.00	110.00	83.0	73.00	10.00	58.0	68.0	M16	M20X1.5	10.0	3.02	W ~	71EAD3871D313 ~	110.00~	ZYL ~	13 ~	65.4~	4652187
BT50 EM 6X70E	50	6.00	25.00	-	70.00	32.0	-	10.00	35.0	45.0	M24	M5	2.5	3.81	W ~	71EAD3871D313 ~	70.00~	ZYL ~	13 ~	101.8~	4652188
BT50 EM 10X70E	50	10.00	35.00	-	70.00	32.0	-	10.00	39.0	49.0	M24	M8	4.0	4.00	W ~	71EAD3871D313 ~	70.00~	ZYL ~	13 ~	101.8~	4652190
BT50 EM 12X100E	50	12.00	42.00	-	100.00	62.0	-	10.00	44.0	54.0	M24	M10	5.0	4.26	W ~	71EAD3871D313 ~	100.00~	ZYL ~	13 ~	101.8~	4652191
BT50 EM 14X100E	50	14.00	44.00	-	100.00	62.0	-	10.00	44.0	54.0	M24	M10	5.0	4.20	W ~	~	100.00~	ZYL ~	13 ~	101.8~	4652192
BT50 EM 20X100E	50	20.00	52.00	-	100.00	62.0	-	10.00	49.0	59.0	M24	M16	8.0	4.51	W ~	71EAD3871D313 ~	100.00~	ZYL ~	13 ~	101.8~	4652195
BT50 EM 25X115E	50	25.00	65.00	-	115.00	77.0	-	10.00	54.0	64.0	M24	M20X1.5	10.0	5.32	W ~	71EAD3871D313 ~	115.00~	ZYL ~	13 ~	101.8~	4652196
BT50 EM 32X115E	50	32.00	72.00	-	115.00	77.0	-	10.00	58.0	68.0	M24	M20X1.5	10.0	5.62	W ~	71EAD3871D313 ~	115.00~	ZYL ~	13 ~	101.8~	4652197
BT50 EM 40X115E	50	40.00	90.00	-	115.00	77.0	-	10.00	68.0	78.0	M24	M20X1.5	10.0	6.45	W ~	71EAD3871D313 ~	115.00~	ZYL ~	13 ~	101.8~	4652198
BT50 EM 50X125E	50	50.00	98.00	-	125.00	67.0	-	10.00	78.0	88.0	M24	M20X1.5	10.0	7.20	W ~	71EAD3871D313 ~	125.00~	ZYL ~	13 ~	101.8~	4652199

Add B for coolant through flange
