TaeguTec Cutting Tools - Metal Working Tools - Tooling System - BT MAS 403

BT-THC (Hydraulic) : Hydraulic chucks with BT MAS-403 form AD taper shanks

Related holder for : HES 4200LT

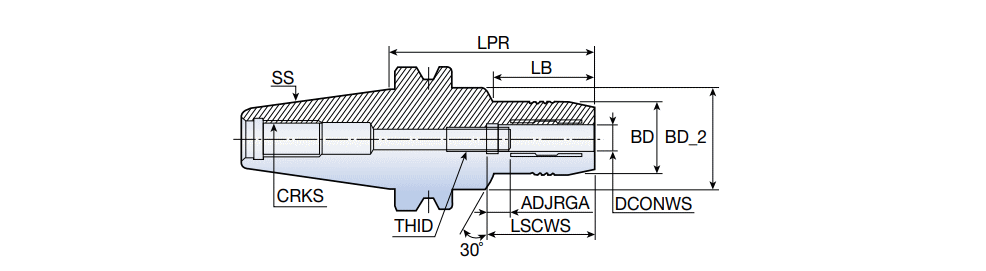

Designation	SS	DCONWS	BD	BD_2	LPR	LB	ADJRGA	Lmin	LSCWS	THID	CRKS	S1	Shank	ClssID	LTA	CCTWS	CCFWS	LS	CCTWS_2	CCFWS_2	GICAT	GIREM
BT30 THC 20-85	30	20.00	43.00	63.00	85.00	38.00	10.00	52.5~	42.5	M10X1	M12	20.00~	C ~	71EAD3871D313 ~	85.00~	ZYL ~	01 ~	48.4~	HYD ~	01 ~	4652283	Balance to G2.5 at 20,000RPM
BT30 THC 20-90	30	20.00	43.00	-	90.00	68.00	10.00	52.5~	42.5	M10X1	M12	20.00~	C ~	71EAD3871D313 ~	90.00~	ZYL ~	01 ~	48.4~	HYD ~	01 ~	4652689	Balance to G2.5 at 20,000RPM
BT40 THC 20-95	40	20.00	43.00	50.00	95.00	48.00	10.00	52.5~	42.5	M10X1	M16	20.00~	C ~	71EAD3871D313 ~	95.00~	ZYL ~	01 ~	65.4~	HYD ~	01 ~	4652860
BT50 THC 20-120	50	20.00	43.00	50.00	120.00	48.00	10.00	52.5~	42.5	M10X1	M24	20.00~	C ~	71EAD3871D313 ~	120.00~	ZYL ~	01 ~	101.8~	HYD ~	01 ~	4652943
BT50 THC 20-140	50	20.00	43.00	50.00	140.00	48.00	10.00	52.5~	42.5	M10X1	M24	0.00~	C ~	71EAD3871D313 ~	140.00~	ZYL ~	01 ~	101.8~	HYD ~	01 ~	4654756
BT50 THC 20-90	50	20.00	43.00	50.00	90.00	32.00	10.00	52.5~	42.5	M10X1	M24	0.00~	C ~	71EAD3871D313 ~	90.00~	ZYL ~	01 ~	101.8~	HYD ~	01 ~	4653683
