3ED-5XD (Cylindrical Shank) : Head changeable 3 flute drills with cylindrical shank (5xD)and coolant holes

Drilling depth: 5xdiameter

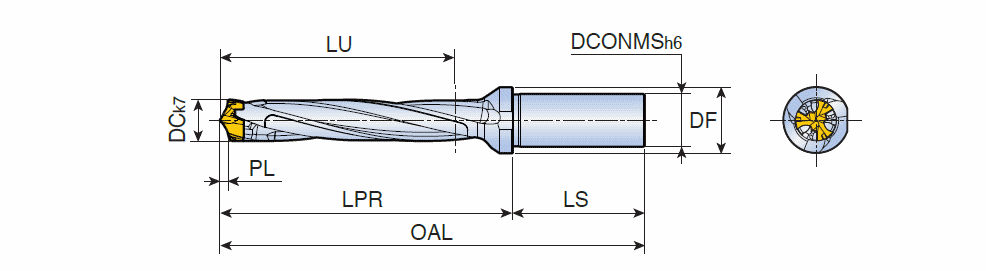

Designation	Tool sty	DCN	DCX	DCONMS	DF	LU	LPR	LS	OAL	PL	SSC		MIID	ClssID	Machines	Zeff	Min Tol	Max Tol	Shank	CICT	DC	L/D	CCFMS	CCTMS	LTA	GICAT
3ED 120-124-16T0-5D	HEAD TYPE ~	12.00	12.40	16.00	20.00	64.0	84.70	48.0	132.70	2.74	12	Y ~	3ED-12-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	12.00~	5.00~	01 ~	ZYL ~	81.96~	6320976
3ED 125-129-16T0-5D	HEAD TYPE ~	12.50	12.90	16.00	20.00	66.5	87.50	48.0	135.50	2.76	12	Y ~	3ED-12-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	12.00~	5.00~	01 ~	ZYL ~	84.74~	6247126
3ED 130-134-16T0-5D	HEAD TYPE ~	13.00	13.40	16.00	20.00	69.0	90.80	48.0	138.80	2.91	13	Y ~	3ED-13-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	13.00~	5.00~	01 ~	ZYL ~	87.89~	6323892
3ED 135-139-16T0-5D	HEAD TYPE ~	13.50	13.90	16.00	20.00	71.5	93.60	48.0	141.60	2.93	13	Y ~	3ED-13-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	13.00~	5.00~	01 ~	ZYL ~	90.67~	6247129
3ED 140-144-16T0-5D	HEAD TYPE ~	14.00	14.40	16.00	20.00	74.0	96.90	48.0	144.90	3.17	14	Y ~	3ED-14-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	14.00~	5.00~	01 ~	ZYL ~	93.73~	6320977
3ED 145-149-16T0-5D	HEAD TYPE ~	14.50	14.90	16.00	20.00	76.5	99.70	48.0	147.70	3.19	14	Y ~	3ED-14-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	14.00~	5.00~	01 ~	ZYL ~	96.51~	6238916
3ED 150-159-20T0-5D	HEAD TYPE ~	15.00	15.90	20.00	25.00	79.0	103.90	50.0	153.90	3.31	15	Y ~	3ED-15-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	15.00~	5.00~	01 ~	ZYL ~	100.59~	6323891
3ED 160-169-20T0-5D	HEAD TYPE ~	16.00	16.90	20.00	25.00	84.0	111.00	50.0	161.00	3.70	16	Y ~	3ED-16-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	16.00~	5.00~	01 ~	ZYL ~	107.30~	6317192
3ED 170-179-20T0-5D	HEAD TYPE ~	17.00	17.90	20.00	25.00	89.0	118.00	50.0	168.00	3.88	17	Y ~	3ED-17-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	17.00~	5.00~	01 ~	ZYL ~	114.12~	6323893
3ED 180-189-25T0-5D	HEAD TYPE ~	18.00	18.90	25.00	32.00	94.0	126.10	56.0	182.10	4.07	18	Y ~	3ED-18-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	18.00~	5.00~	01 ~	ZYL ~	122.03~	6323894
3ED 190-199-25T0-5D	HEAD TYPE ~	19.00	19.90	25.00	32.00	99.0	132.70	56.0	188.70	4.26	19	Y ~	3ED-19-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	19.00~	5.00~	01 ~	ZYL ~	128.44~	6323895
3ED 200-209-25T0-5D	HEAD TYPE ~	20.00	20.90	25.00	32.00	104.0	139.30	56.0	195.30	4.44	20	Y ~	3ED-20-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	20.00~	5.00~	01 ~	ZYL ~	134.86~	6320978
3ED 210-219-25T0-5D	HEAD TYPE ~	21.00	21.90	25.00	32.00	109.0	145.80	56.0	201.80	4.62	21	Y ~	3ED-21-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	21.00~	5.00~	01 ~	ZYL ~	141.18~	6323896
3ED 220-229-25T0-5D	HEAD TYPE ~	22.00	22.90	25.00	32.00	114.0	152.40	56.0	208.40	4.78	22	Y ~	3ED-22-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	22.00~	5.00~	01 ~	ZYL ~	147.62~	6323897
3ED 230-239-32T0-5D	HEAD TYPE ~	23.00	23.90	32.00	42.00	119.0	158.80	60.0	218.80	5.02	23	Y ~	3ED-23-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	23.00~	5.00~	01 ~	ZYL ~	153.78~	6323898
3ED 240-249-32T0-5D	HEAD TYPE ~	24.00	24.90	32.00	42.00	124.0	165.40	60.0	225.40	5.18	24	Y ~	3ED-24-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	24.00~	5.00~	01 ~	ZYL ~	160.22~	6323899
3ED 250-259-32T0-5D	HEAD TYPE ~	25.00	25.90	32.00	42.00	129.0	172.00	60.0	232.00	5.29	25	Y ~	3ED-25-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	25.00~	5.00~	01 ~	ZYL ~	166.71~	6320979
