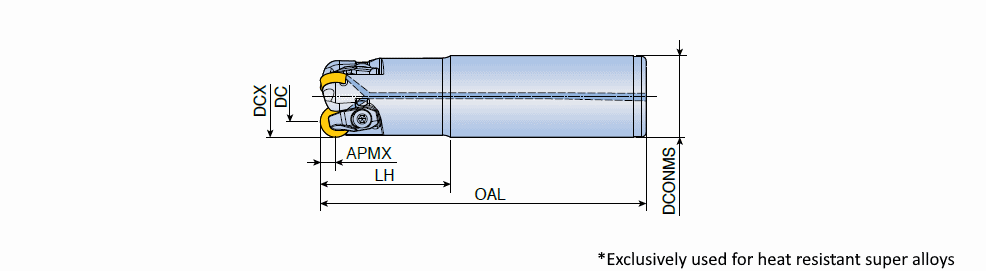

TERP-12 : End mills with positive round RPGN 12 ceramic inserts & wedge clamp with air hole for high speed profiling of super alloys

Use only air (Coolant is prohibited)

Designation	Tool sty	CICT	DCX	DC	DCONMS	OAL	LH	APMX	Air hole	S1	KAPR	Shank	Rd	e	PD		Insert	Pocket	ClssID	MIID		RE	CCTMS	CCFMS	LTA	GICAT	GIREM	giic	GICODE
TERP 332-32-12-L120	ENDMILL ~	3	32.00	19.30	32.00	120.00	40.0	6.30	O	12.00~	3.0~	C ~	17.40~	~	RC ~	0.66~	CS-RP12 ~	~	71E01A05D27A8 ~	RPGN 1204 FL-E04	Air hole ~	6.35~	ZYL ~	01 ~	60.00~	6337333		0
TERP 440-32-12-L120	ENDMILL ~	4	40.00	27.30	32.00	120.00	30.0	6.30	O	12.00~	3.0~	C ~	10.50~	~	C ~	0.71~	CS-RP12 ~	~	71E01A05D27A8 ~	RPGN 1204 FL-E04	Air hole ~	6.35~	ZYL ~	01 ~	60.00~	6337334		0
