TJS HPC ER32 : High-pressure 40-70 bar coolant driven high-speed spindle with ER32 shanks for max. shank diameter 7mm tools. For semi-finishing & finishing applications in milling, drilling & grinding on limited RPM machines.

For ER-SPR collets use "AA" ultra precision type only

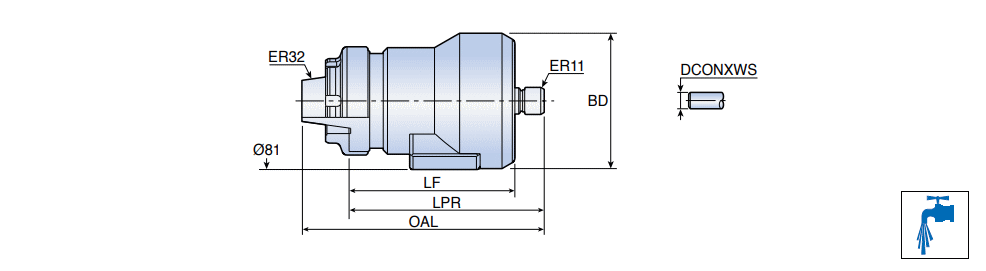

Designation	SS	DCONXWS	LF	LPR	OAL	BD		S3	LTA	GICAT	GIREM	giic	GICODE
TJS HPC ER32	32	7.00	99.00	116.00	144.00	80.00	2.00	ER11 ~	109.40~	6330793		0

Coolant pressure: 40 - 70 bar and flow rate: 16 - 22 /min
Rotational spindle speed [rpm]: 25,000 - 45,000 (rev/min)
The spindle provides only external strong coolant jet around the tool
DCONXWS: Maximum diameter of tools
For user guide, click on "More Info"
