ST-ER-MFD : Double-ended mini ER collet chucks with straight shank and flat area for Swiss type CNC lathes


 IT_N5                                              IT_SURFACE HARDNESS 58~60HRC                       IT_RUN-OUT A0.005

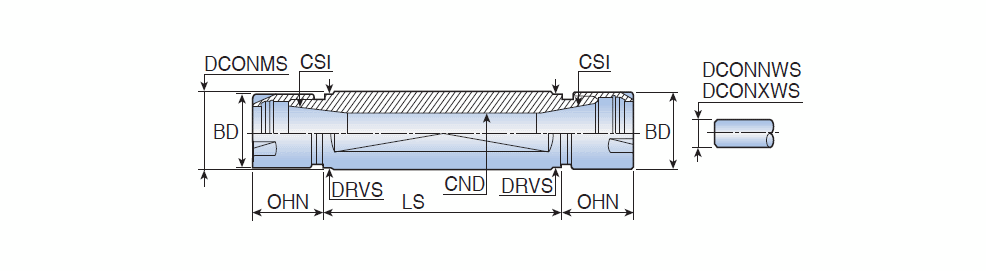

  DesignationDCONMS CSI DCONWS DCONXWS CND BD OHN LS DRVS WT S1 d ClssID LTA GICATGIREMgiicGICODE
  ST 16X 50 ER11 MF D 16 ER11 0.507.007.516.0018.5050.0014.00.0911.00~ 0.5-7 ~71EAD3871D313 ~13.90~4603619 0
  ST 20X 30 ER11 MF D 20 ER11 0.507.007.516.0018.5030.0017.00.0911.00~ 0.5-7 ~71EAD3871D313 ~12.40~4603620 0
  ST 20X 50 ER11 MF D 20 ER11 0.507.007.516.0018.5050.0017.00.1311.00~ 0.5-7 ~71EAD3871D313 ~11.90~4603621 0
  ST 20X 55 ER16 MF D 20 ER16 0.5010.0010.522.0025.0055.0017.00.1316.00~ 0.5-10 ~71EAD3871D313 ~19.40~4603622 0
  ST 22X 55 ER16 MF D 22 ER16 0.5010.0010.522.0028.0055.0019.00.1716.00~ 0.5-10 ~71EAD3871D313 ~22.40~4603623 0
  ST 22X 75 ER16 MF D 22 ER16 0.5010.0010.522.0028.0075.0019.00.2116.00~ 0.5-10 ~71EAD3871D313 ~42.40~4603624 0
  ST 25X 62 ER16 MF D 25 ER16 0.5010.0010.522.0028.0062.0022.00.2316.00~ 0.5-10 ~71EAD3871D313 ~23.40~4603625 0
  ST 32X 55 ER20 MF D 32 ER20 1.0013.0013.528.0028.0055.0027.00.3420.00~ 1-13 ~71EAD3871D313 ~21.50~4603626 0
  ST 32X 75 ER20 MF D 32 ER20 1.0013.0013.528.0028.0075.0027.00.4420.00~ 1-13 ~71EAD3871D313 ~31.50~4603627 0
MF: Mini flat double
