3PHT 15-ML : High positive inserts 3PHT with 3 helical cutting edges for 90° shoulders & exotic materials & light machining from sharp geometry

Related insert for : 3P TE90-440-W32-15

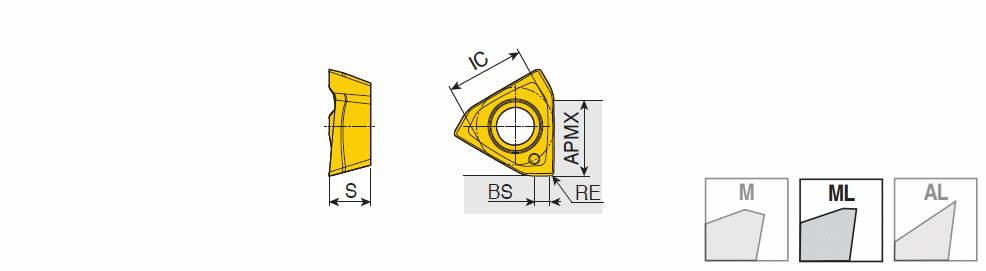

Designation	IC	RE	BS	S	APMX	S1	CEDC	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	CB	GRDMFG	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
3PHT 150508R-ML	10.70	0.80	1.60	5.00	11.00	15.00~	3~	MR-3P15 ~	3.00	9.00	0.120	0.050	M5.5 ~	T ~	71DD68D8446CE ~	ML ~	TT8080 ~	5630198		2		TT8080 TT9080
